Top Tools and Accessories for Efficient PLC Installation and Maintenance

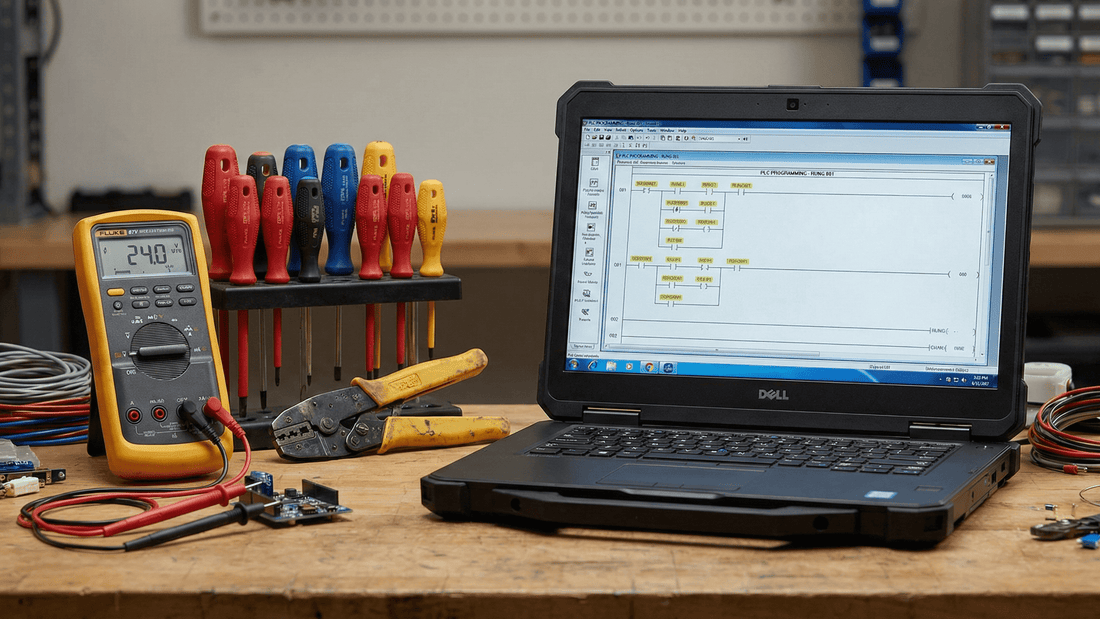

A well-equipped workbench is the foundation of efficient automation maintenance.

Introduction

No matter how advanced your PLC is, the basics of installation and repair come down to nuts and bolts. Stripped wires, loose terminals, and faulty connections are often the culprits behind automation hiccups. Having a well-stocked toolkit means you can fix these quickly and safely. The right screwdriver or torque wrench ensures panels stay tight; a reliable multimeter and clamp meter help pinpoint electrical issues; test cables and label makers keep the control panel organized.

Many engineers overlook these details, but as experts often point out, “a multimeter is the most critical tool to measure voltage and current that helps professionals understand the state of equipment.” This article addresses common pain points – like dealing with mismatched connectors or ambiguous wiring – by recommending tools that are specifically suited for industrial automation work. Before you begin selecting hardware, it is often helpful to review our guide on choosing the right PLC, as the scale of your system will dictate the complexity of the tools required.

Multimeters and Test Equipment

The digital multimeter (DMM) is indispensable for any automation engineer. It serves as the primary diagnostic tool for verifying voltage presence, checking fuse continuity, and measuring resistance in sensors. For industrial environments, it is crucial to select a model that meets rugged demands—typically rated CAT III 600V or CAT IV 600V—such as the Fluke 117 or Klein MM400. These ratings ensure the meter can withstand high-energy transients found in three-phase distribution systems.

Beyond the standard DMM, a clamp meter is vital for measuring current without disconnecting wires. This is essential for live troubleshooting where shutting down the machine is not immediately possible. By clamping around a conductor, technicians can verify if a motor is drawing excessive current or if a solenoid is energized.

For more advanced maintenance, an insulation tester (megger) helps verify the integrity of motor windings and cable insulation, while a handheld oscilloscope is increasingly common for viewing signal waveforms on communication lines. Reliable measurement is the first step in ensuring the longevity of your system components. For more on protecting these components, see our article on industrial circuit protection.

Screwdrivers and Hand Tools

While it may seem basic, the quality of your hand tools directly impacts the reliability of your PLC installation. Insulated screwdrivers and nut drivers (rated 1000 V) are non-negotiable when working on live panels to protect against accidental shocks and short circuits. A set with interchangeable bits is often preferred for navigating the tight spaces inside crowded control cabinets.

Wire termination is another critical area. Poorly stripped wires can lead to intermittent faults. High-quality wire strippers that cleanly remove insulation without nicking the copper conductor are essential. Furthermore, using a ratcheting crimper ensures that ferrules and lugs are compressed to the correct pressure every time.

Finally, a torque screwdriver is increasingly becoming a standard requirement. It ensures terminal screws are tightened to manufacturer specifications, preventing loose connections that cause heat buildup, without over-tightening which can crack terminal blocks.

Cabling and Connectors

Connectivity issues are a leading cause of downtime. An automation toolkit should include a variety of cables and adapters, including USB-to-RS232 converters for older PLCs, and shielded Ethernet patch cords (Cat5e/6) for modern systems. Standard office Ethernet cables often lack the shielding necessary to block electromagnetic interference (EMI) found in factory environments.

When dealing with diverse industrial networks, the physical layer is just the beginning. You must also consider the protocols running over these cables. To understand the nuances of different network standards, refer to our comparison of PLC communication protocols.

It is also wise to stock common wire gauges (16–24 AWG) and field-wireable connectors (such as M12 or DB9). Having a "triage kit" of these consumables allows you to replace a damaged cable head on the spot rather than waiting for a replacement assembly.

Programming and Diagnostic Accessories

The laptop is the control engineer’s workbench. A reliable laptop with sufficient RAM (16–32 GB) and a fast SSD (512 GB+) is required to run resource-heavy engineering software like Siemens TIA Portal or Rockwell Studio 5000. Because different PLCs often require different versions of software, many engineers run Virtual Machines (VMs) to keep environments isolated, which demands significant hardware resources.

Connectivity ports are equally important. Since many modern laptops lack native serial or Ethernet ports, carrying high-quality USB adapters is essential. Furthermore, legacy systems often require specific proprietary programming cables. If you are frequently connecting to older hardware, you might find our guide on upgrading legacy PLCs particularly relevant.

Labeling and Documentation

A neat panel is a maintainable panel. "Mystery wires" can turn a ten-minute repair into a four-hour ordeal. Portable label printers utilizing heat-shrink labels allow technicians to identify wires, terminal blocks, and I/O modules clearly.

Documentation extends beyond labeling. A digital camera or a smartphone is an invaluable tool for documenting the state of wiring before making changes. This photographic evidence acts as a safety net, ensuring you can revert the system to its original state if a modification fails.

Safety Gear and Carrying Solutions

Safety is paramount. Personal protective equipment (PPE) such as insulated gloves and safety glasses should always be worn, particularly when verifying zero energy in high-voltage panels. For technicians handling static-sensitive cards or chips, ESD-safe mats and wrist straps are necessary to prevent latent damage to electronic components.

Finally, organization is key to efficiency. A sturdy, open-top tool bag or a backpack specifically designed for tech tools saves time spent searching for the right screwdriver. Keeping your multimeter and laptop accessible yet protected ensures they are ready for use the moment you arrive at the machine.

Conclusion

Equipping yourself with the right tools and accessories is a simple yet profound way to prevent headaches in automation projects. Quality test instruments catch faults quickly, precision hand tools ensure safe and reliable connections, and good organization keeps wiring clear. With these essentials on hand, engineers and technicians can complete installations faster, perform maintenance with confidence, and spend less time troubleshooting preventable issues. Ultimately, the goal is system reliability; for more strategies on keeping your systems running at peak efficiency, check out our tips on maximizing PLC performance.

Call to Action

Need these tools on the job? Check out Chipsgate’s Accessories and Test Equipment categories for multimeters, wire tools, and more. We stock trusted brands for industrial use, so you can get your projects done right the first time.

FAQ

What features should I look for in an industrial multimeter?

Look for at least a 600 V measurement range, a 10 A current range, and true-RMS sensing (crucial for accurate AC measurements on variable frequency drives). Industrial meters often include a temperature probe input and robust overload protection. Models from Fluke, Klein, and Extech are popular choices.

Do I need an insulated screwdriver set for all control panel work?

Yes, especially when live circuits might be present or when verifying zero voltage. Insulated screwdrivers (rated 1000 V) protect against accidental shorts or shocks. The small extra cost is an invaluable investment in personal safety.

Can I use my home cable tester for industrial Ethernet?

A basic cable tester can check continuity, but industrial networks often require shielding checks which basic testers miss. For critical connections, a network cable certifier is best. At minimum, ensure you are using properly rated Ethernet cable (Cat6A STP for harsh environments) and a tester that can verify shield continuity.

How do I keep PLC programming software up to date on my laptop?

Maintain software subscriptions or service agreements with your PLC vendors. Regularly check for patches or hardware support packages (HSPs). It is also highly recommended to maintain separate virtual machines for different software versions so that old projects remain accessible without conflict.

What’s the advantage of a clamp meter over a regular multimeter?

A clamp meter measures current by clamping around a conductor, meaning you do not need to break the circuit to insert the meter in series. This is much faster and significantly safer for checking running circuits or measuring high amperages without shutting down the process.
