Essential Circuit Protection Devices for Reliable Industrial Automation

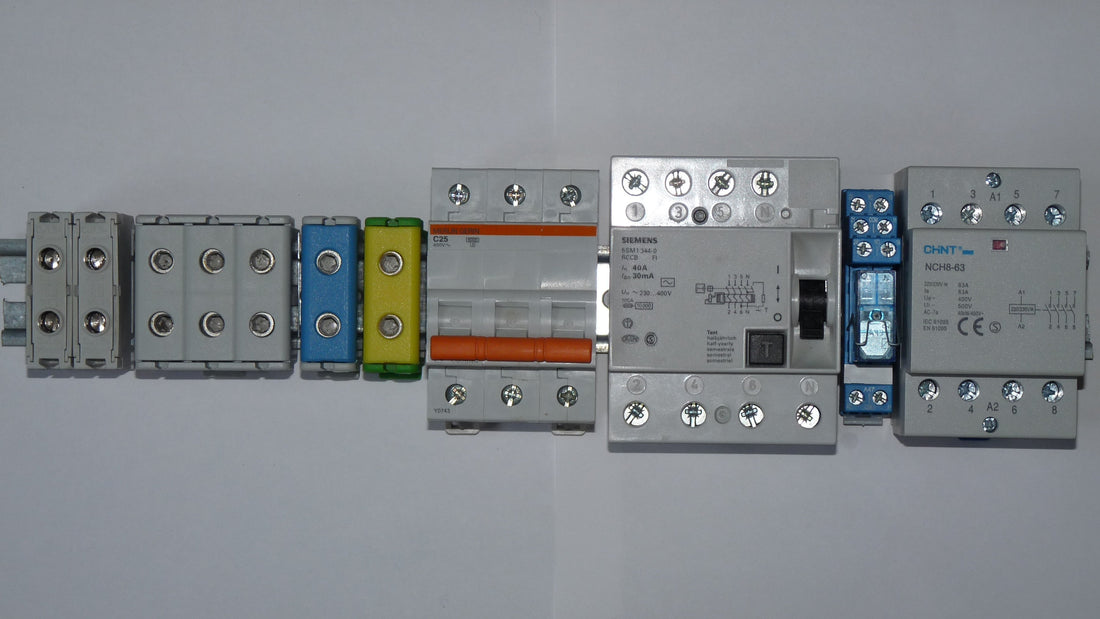

A well-organized control panel with DIN-rail mounted protection devices is the first line of defense for automation systems.

Introduction

Imagine a perfectly tuned production line grinding to a halt because of a blown fuse or a tripped breaker. In industrial automation, even a minor short circuit or overload can cause days of downtime and costly equipment damage if left unchecked. Modern automation systems rely on a dense network of sensitive electrical components like PLCs (Programmable Logic Controllers), VFDs (Variable Frequency Drives), and sensors, all of which must be protected against electrical faults.

Installing the correct fuses, circuit breakers, and surge suppressors is not just a suggestion; it's a fundamental requirement for protecting equipment and keeping production lines running safely. As AutomationDirect notes, circuit protection is "critical for protecting equipment from excess energy" that can result from overcurrent events. This article tackles the essential task of selecting and applying these devices. We will explore why overcurrent protection is critical, how to implement emergency stops and grounding correctly, and how to balance stringent safety requirements with system availability to avoid those costly, unscheduled stops.

The Core Principles of Automation Circuit Protection

Overcurrent Protection: Fuses vs. Circuit Breakers

At the heart of circuit protection are two primary devices: fuses and circuit breakers. Both serve the same fundamental purpose: to interrupt the flow of electricity during an overload (current slightly above rating) or a short circuit (current massively above rating). However, they do so in different ways.

We can compare fuses with industrial circuit breakers based on several key factors:

When selecting fuses for control circuits, the type matters. Fast-blow (Type F) fuses react instantly and are ideal for protecting sensitive semiconductor devices. In contrast, time-delay (Type T) or slow-blow fuses are designed to withstand temporary inrush currents, such as those from motors starting or power supplies charging capacitors, without nuisance tripping.

Proper Sizing and Selection

A protective device is useless if improperly sized. The selection process involves a few key steps:

1. Calculate Normal Operating Current: Sum the Full Load Amps (FLA) of all devices on the circuit (e.g., PLC power supply, I/O module loads, contactor coils).
2. Apply Safety Margin: For continuous loads, codes like the NEC (NFPA 70) often require the protection device to be rated for 125% of the continuous current.
3. Account for Inrush: As mentioned, select time-delay fuses or breakers with appropriate trip curves (like D-curve) for circuits with high startup currents.
4. Consider Derating: If the control panel will operate in a high-temperature environment (above 40°C), you must derate the device's current-carrying capacity according to the manufacturer's tables.

Always consult the device's documentation (e.g., the PLC manual) for recommended protection ratings.

Surge Protection and Transient Voltage Suppression

Overcurrent isn't the only electrical threat. Voltage spikes, or transients, are short-duration, high-voltage events often caused by switching inductive loads (like motors, relays, and solenoids) or by nearby lightning strikes. These spikes can easily destroy the sensitive microelectronics inside PLCs and I/O modules.

To combat this, Surge Protection Devices (SPDs) or Transient Voltage Suppressors (TVS) should be installed on the main power feed to the control panel (Type 2 SPD) and on sensitive communication lines (like Ethernet or fieldbus). These devices work by "clamping" any voltage above a safe threshold and diverting the excess energy to ground, protecting the downstream equipment.

Emergency Stop (E-Stop) Circuits and Safety Relays

Operator safety is paramount. An Emergency Stop (E-Stop) circuit is a mandatory, hard-wired system designed to bring a machine to a safe state as quickly as possible. Per standards like ISO 13850, an E-stop button must not rely on software (i.e., the PLC program) to function.

Instead, the E-stop button should be wired directly to a safety relay or safety contactor. These specialized relays have force-guided (or positively-driven) contacts. This design ensures that even if one contact welds shut, the other contacts are guaranteed to open, reliably cutting power to the machine's actuators. The PLC can monitor the E-stop's status as an input, but it must never be in control of the safety stop itself.

The Critical Role of Grounding and Isolation

Proper grounding is an often-overlooked but critical component of electrical safety and system reliability. A control cabinet must have a solid, low-impedance connection to the facility's protective earth (PE) ground.

• Safety: Grounding provides a safe path for fault currents to flow, tripping a breaker rather than electrifying the machine chassis and shocking an operator.
• Noise Immunity: A "floating" or poor ground can act as an antenna, introducing electrical noise into control circuits, which can lead to erratic PLC behavior or data corruption.

In extremely "noisy" electrical environments (e.g., near large welders or VFDs), using an isolation transformer or an isolated power supply for the PLC can provide an extra layer of immunity by creating a clean, dedicated power source.

Protecting PLC Outputs and I/O Modules

Protection isn't just for the main power supply. The individual outputs of a PLC also require protection, especially when driving inductive loads. When a PLC output turns off a relay coil or solenoid, the collapsing magnetic field (known as back-EMF) induces a large voltage spike that can damage the PLC's internal output transistor or relay.

To prevent this, a flyback diode should be installed across a DC coil, or a snubber circuit (resistor-capacitor) across an AC coil. For added protection and serviceability, fused terminal blocks can be used on critical outputs, allowing for individual circuit isolation and protection.

Maintenance of Protection Devices

Circuit protection devices are not "set it and forget it." A regular maintenance routine is essential to catch aging components before they fail.

• Fuses: Inspect annually for signs of overheating (discoloration). Always replace a fuse with one of the exact same type and rating.
• Circuit Breakers: Periodically "exercise" breakers (manually switch them off and on) to ensure the internal mechanism is not stuck.
• Surge Protectors: Most SPDs have a status indicator (e.g., an LED). Check these indicators regularly, and especially after any major electrical storm, and replace the unit if it indicates it has sacrificed itself.

Conclusion: A Non-Negotiable Investment

No matter how sophisticated your PLC logic or how advanced your automation, the entire system is vulnerable without a robust electrical protection strategy. A single unmitigated fault can halt production, destroy expensive components, and compromise operator safety.

By carefully selecting, sizing, and implementing the right fuses, circuit breakers, surge suppressors, and safety devices, you build the first and most important line of defense for your automation investment. These components are not expenses; they are insurance that ensures small electrical issues don't become catastrophic failures, keeping your equipment safe and your lines running reliably.

Keep Your Systems Safe and Online

Visit Chipsgate’s Circuit Protection category to browse UL-rated fuses, breakers, and safety devices that suit your control panels. For any questions on matching protection to your PLCs, our experts are here to help.

Frequently Asked Questions (FAQ)

Can I use a regular fuse to protect my PLC’s power supply?

Yes, in fact, it is required. You should use a fuse or circuit breaker rated just above the PLC’s normal operating current draw. A slow-blow (time-delay) fuse is often recommended if the power supply has a high inrush current when it first turns on (due to charging capacitors). Always check the PLC manufacturer’s manual for the specifically recommended fuse type and rating.

What’s the difference between Type 1 and Type 2 surge protectors?

Type 1 protectors are heavy-duty devices installed at the building's service entrance to protect against major external surges, like direct or nearby lightning strikes. Type 2 protectors are installed downstream, typically within control panels or at sub-panels, to protect against internally generated surges (from motors, switching, etc.) and the residual energy let through by a Type 1 device. For PLC panels, you should use a Type 2 transient voltage suppressor (TVS) or SPD mounted on the DIN rail.

How do I wire an emergency stop into a PLC system?

The E-stop button must be wired to cut the power to the machine's actuators (motors, heaters, etc.) in a hard-wired, positive-break fashion. This is almost always done by wiring the E-stop button in series with a safety relay, which in turn controls the main power contactors. You can (and should) also wire a spare contact from the E-stop or safety relay as a digital input to the PLC for status monitoring, but the safety cut-off function must be independent of the PLC program.

Do I need to fuse each output of a PLC?

It is highly recommended, especially if the outputs are driving external loads like solenoids, contactor coils, or motors. Fusing each output protects the PLC's internal output card from a short circuit in the field wiring or a faulty load. Some PLC output modules have built-in electronic protection, but external fuses or fused terminal blocks provide a more robust and serviceable solution.

How often should I check circuit protection devices?

Inspect fuses and breakers at least annually as part of a preventive maintenance schedule, or immediately after any major fault. Replace any fuse that shows signs of overheating or degradation. Manually test (exercise) circuit breakers to ensure they are not seized. Check surge suppressor status indicators after any major power event or electrical storm.
