Energy-Efficient Resistors and Passive Components for Industrial Control Systems (2026 Guide)
In 2026, energy efficiency in industrial automation is no longer just a cost-saving measure—it is a core strategy for system resilience. This comprehensive guide examines the critical role of high-quality passive components, such as precision resistors, low-ESR capacitors, and RC snubbers, in optimizing control circuits. Learn how the strategic selection of power resistors for dynamic braking and EMI filters for noise suppression can reduce thermal drift, minimize standby power losses, and significantly extend the lifespan of your PLC and HMI hardware.

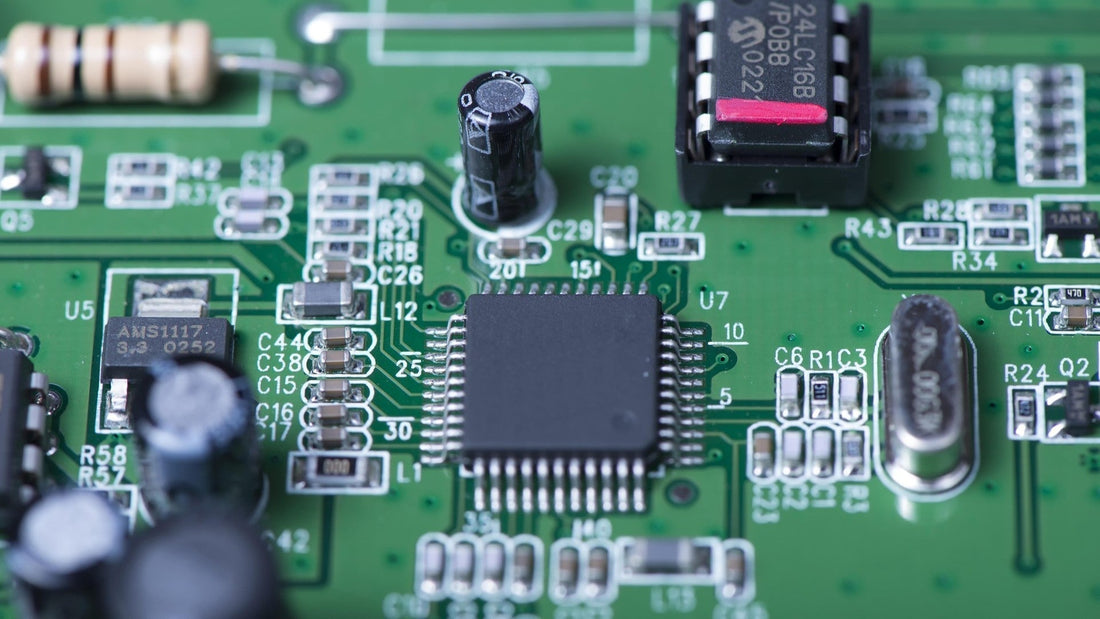

A close-up of a modern industrial control PCB. The stability of the central logic processor relies heavily on the surrounding passive components—specifically the precision SMD resistors and filtering capacitors—to manage power delivery and suppress noise.
Image by Владимир from Pixabay
In the landscape of industrial automation, passive components—resistors, capacitors, and inductors—are often viewed as secondary to the PLCs and HMIs they support. However, as energy costs rise and 2026 sustainability mandates prioritize system resilience, these "invisible" components have become critical to overall operational efficiency.
Modern efficiency strategies treat energy conservation as a form of system hardening. Reducing waste heat through better component selection not only lowers power consumption but also extends the lifespan of sensitive control hardware. This guide explores how to select high-quality industrial resistors, filters, and snubbers to optimize your control systems.
Key Takeaways
- Precision Matters: Low-tolerance resistors prevent signal drift in critical sensor feedback loops.
- Heat Management: Properly sized power resistors handle dynamic braking energy without overheating the enclosure.
- Surge Protection: RC snubbers are essential for protecting PLC relay outputs from inductive kickback.
- Energy Efficiency: Low-ESR capacitors and correctly rated resistors minimize standby power losses.
Precision Resistors in Signal Conditioning
For analog input modules handling 4-20mA signals or RTD data, component stability is paramount. Standard carbon film resistors often suffer from high thermal drift, which can introduce measurement errors as the control panel heats up.
In 2026 designs, engineers favor metal film or wirewound precision resistors with tight tolerances (e.g., ±0.1% to ±1%) and low Temperature Coefficients of Resistance (TCR). These components ensure that voltage dividers and feedback loops remain stable regardless of ambient temperature fluctuations. Maintaining this signal integrity is vital when integrating diverse sensors into complex automation networks, where even minor deviations can trigger false alarms or process inefficiencies.
Power Resistors and Dynamic Braking
Variable Frequency Drives (VFDs) and servo systems frequently encounter regenerative energy during rapid deceleration. If not managed, this energy can trip the drive via an over-voltage fault. High-wattage power resistors are the standard solution for dissipating this excess energy as heat.
When selecting braking resistors, consider the following:
- Wattage Rating: Must handle the peak pulse power of the braking cycle, not just the continuous load.
- Construction: Wirewound resistors encased in ceramic or aluminum housing offer superior heat dissipation and vibration resistance.
- Placement: Due to significant heat generation, these should be mounted externally or in a ventilated section of the panel to prevent thermal throttling of adjacent logic controllers.
EMI Filters and Surge Suppression
Electromagnetic Interference (EMI) and voltage spikes are leading causes of intermittent PLC failure. As factories become noisier with increased wireless communication and high-speed switching, passive protection becomes non-negotiable.
The Role of RC Snubbers
Inductive loads, such as solenoid valves and motor contactors, generate high-voltage spikes (back EMF) when de-energized. An RC snubber network placed across the load absorbs this energy, preventing arcing across relay contacts and protecting solid-state outputs. Implementing essential circuit protection strategies, like properly sized snubbers, ensures compliance with EMC directives and significantly prolongs hardware life.
Power Line Filtering
EMI filters on the incoming power lines of a control panel prevent grid noise from corrupting logic processes. Effective filters utilize a combination of inductors and capacitors (X and Y safety capacitors) to shunt common-mode and differential-mode noise to ground.
Enhancing Efficiency via Component Selection
While an individual resistor consumes negligible power, the cumulative effect in a large industrial plant is measurable. Energy-efficient design involves selecting components that minimize parasitic losses:
| Component Type | Standard Choice | Energy-Efficient Choice | Benefit |
|---|---|---|---|
| Capacitors | Standard Aluminum Electrolytic | Low-ESR (Equivalent Series Resistance) | Reduces internal heating and energy loss in power supplies. |
| Resistors | Carbon Composition | Metal Film / Thin Film | Lower noise and better stability reduce the need for recalibration. |
| Control Logic | Resistive Voltage Droppers | PWM Control / SMPS | Eliminates waste heat associated with linear voltage reduction. |
Derating and Environmental Resilience
To ensure longevity, passive components should rarely be operated at 100% of their rated capacity. A common industry practice is to derate components by 20-50%, especially in panels where internal temperatures exceed 40°C.
For harsh environments, consider moisture-resistant MELF resistors or automotive-grade capacitors. These components resist sulfur contamination and vibration, reducing maintenance intervals. By focusing on these details, you optimize overall PLC performance and ensure the system remains reliable under stress.
Conclusion
In the efficiency-focused era of 2026, selecting the right passive components is a strategic engineering decision. Well-chosen industrial resistors, snubbers, and filters not only ensure signal accuracy and regulatory compliance but also contribute to the broader goal of energy resilience.
Ready to upgrade your control panel? Explore Chipsgate’s range of high-performance Passive Components, including UL-rated power resistors and precision capacitors designed for industrial automation.
Frequently Asked Questions (FAQ)
Q: Can any general-purpose resistor be used in my PLC panel?
A: No. For critical control circuits, you should use resistors with appropriate precision (1% or better), power ratings, and temperature coefficients. Avoid generic carbon film resistors in high-reliability or power applications; use metal film or wirewound types instead.
Q: What is a snubber network and do I need one?
A: A snubber (RC network) is placed across inductive loads like coils or solenoids to absorb voltage spikes when the device is turned off. If your system drives relays or motors, a snubber is essential to prevent damage to PLC outputs and reduce electromagnetic noise.
Q: How do resistors impact energy efficiency?
A: Resistors dissipate energy as heat. By choosing the correct resistance values to avoid excessive current draw and selecting low-tolerance parts that prevent system "drift" (which causes inefficiency), you minimize waste. Additionally, using low-ESR capacitors improves the efficiency of power delivery.
