Optimizing HVAC Systems with Yaskawa Variable Frequency Drives
This practical guide helps facilities and controls engineers choose and use Yaskawa variable frequency drives (VFDs) for HVAC systems. It explains why VFDs are essential for saving energy in fans, pumps, and compressors, and how Yaskawa’s drives (like the HV600 series) simplify HVAC applications. The article covers drive features (embedded BACnet/Ethernet, regenerative options), selection tips, and tuning basics. By following this guide, readers will be able to specify the right Yaskawa drive for their HVAC motor, achieving better performance and lower operating costs.

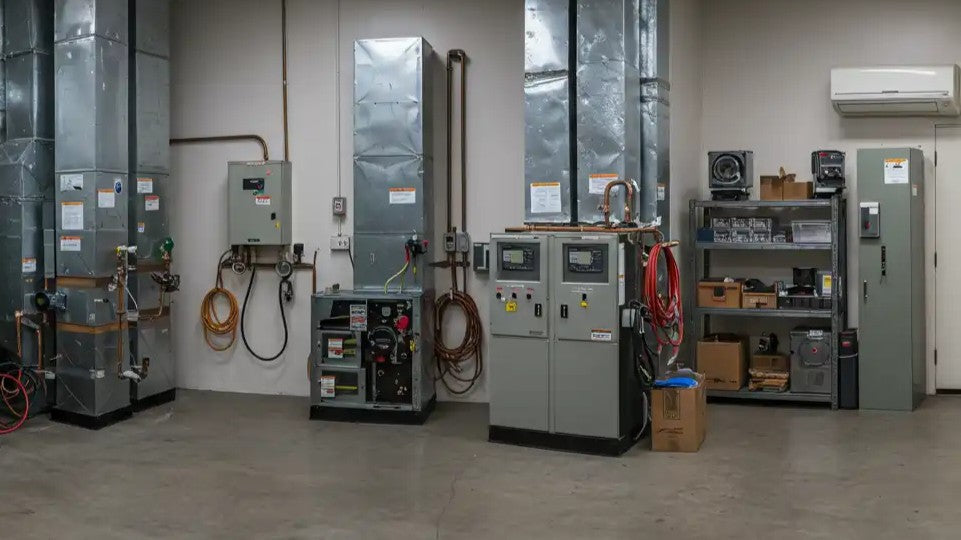

Variable Frequency Drives (VFDs) installed in a commercial HVAC mechanical room, regulating pump and fan speeds for maximum energy efficiency.
Key Takeaways
- Energy Savings: Utilizing variable frequency HVAC drives leverages the affinity laws—reducing pump speed by just 20% can cut energy usage by approximately 50%.
- Advanced Connectivity: Modern Yaskawa HVAC drives, such as the HV600, feature embedded BACnet and Metasys N2 protocols for seamless Building Management System (BMS) integration.
- Sizing Precision: Correct selection requires matching the drive's continuous current rating to the motor's full load amps (FLA), not just horsepower.
- Reliability: Features like soft starts and harmonic mitigation (IEEE 519 compliance) extend equipment life and improve power quality.
HVAC systems often account for the largest portion of a commercial building’s energy consumption. While high-efficiency motors are a good start, installing VFDs provides precise speed control that translates into massive energy savings. However, choosing the right drive requires careful consideration of load types and environmental conditions. Yaskawa, a global leader in drive technology, offers dedicated Yaskawa HVAC drives designed specifically for the unique demands of chillers, pumps, and fans.
This guide addresses a common question among engineers: “How do I select the correct Yaskawa drive for my HVAC motor, and what tangible benefits will I see?” The answer lies in understanding the synergy between motor control and building dynamics.
Why Use VFDs in HVAC?
Before diving into selection, it is crucial to understand the mechanical and electrical benefits of integrating a Yaskawa AC drive into your system.
Variable Load Management
HVAC loads are rarely static. Building occupancy, weather conditions, and time of day cause the demand for air and water flow to fluctuate. Fixed-speed motors waste energy by running at full capacity regardless of demand, often relying on mechanical throttling valves or dampers to restrict flow. VFDs adjust the motor speed to match the actual load requirement, which is inherently more efficient than mechanical restriction.
Soft Start and Stop
Direct-on-line (DOL) starters subject motors to high inrush currents and mechanical torque shocks. Drives ramp motors up to speed smoothly. This reduces mechanical stress on belts, couplings, and bearings, extending the life of the equipment. Furthermore, this controlled acceleration prevents voltage dips on the facility’s power network.
Enhanced Process Control
For applications requiring strict temperature or pressure adherence, VFDs offer superior control. By utilizing PID loops embedded within the drive or receiving signals from a BMS, the system can maintain setpoints with high precision, improving occupant comfort.
Selecting the Right Yaskawa Drive
A successful installation begins with the choosing the right automation products. Yaskawa offers several series tailored to different needs.
Drive Series Overview
The HV600 series is Yaskawa’s flagship solution for HVAC, covering a range of 3–250 HP (2–200 kW). It is designed specifically for fans and pumps, featuring a high-contrast display and mobile device configuration capabilities. For smaller applications or OEM units, the HV305 serves as a compact microdrive solution (up to 30 HP). For heavy-duty requirements, the general-purpose A1000 series is also frequently utilized.
Key Specifications
When selecting a Yaskawa VFD selection guide, consider the following parameters:
- Voltage and Phase: Ensure the drive matches the supply voltage (e.g., 208V, 480V) and is rated for three-phase input.
- Current Rating: Select a drive based on the motor’s Full Load Amps (FLA), not just the Horsepower. The drive’s continuous current rating must meet or exceed the motor's FLA.
- Enclosure Type: For clean control rooms, UL Type 1 (IP20) is standard. For mechanical rooms or rooftops, specify UL Type 12 or Type 3R (IP54/55) to protect against dust and moisture.
Communication Options
Modern buildings rely on data. Yaskawa drives facilitate this with embedded protocols. The HV600, for instance, comes with BACnet MS/TP, Metasys N2, and Modbus RTU as standard. For IP-based networks, optional cards allow for BACnet/IP integration, simplifying the architecture.
Installation and Commissioning
Proper installation ensures longevity. Follow this checklist to ensure your system runs reliably.
| Step | Action Item | Details |
|---|---|---|
| 1. Environment | Verify Mounting Location | Install in a well-ventilated area free of conductive dust. Ensure adequate clearance for heat dissipation. |
| 2. Wiring | Grounding & Shielding | Use shielded motor cables (VFD cable) to mitigate noise. Ensure the ground path is low impedance. |
| 3. Programming | Parameter Setup | Input motor nameplate data (Voltage, Amps, Hz) via the keypad or DriveWizard software. |
| 4. Tuning | Optimize Loops | Tune the PID settings for stable pressure/flow control. Use Sensorless Vector (SLV) mode for high-torque starts if needed. |
For those looking to improve existing setups, our guide on optimizing your current system provides further insights into tuning control loops and system responsiveness.
Energy Savings and ROI
The Affinity Laws
The primary driver for HVAC VFD energy savings is the physics of centrifugal loads, described by the affinity laws. The power required to drive a centrifugal fan or pump is proportional to the cube of the speed ($P \propto n^3$).
This means:
- Running a fan at 80% speed requires only ~51% of the power ($0.8^3 = 0.512$).
- Running at 50% speed requires only ~12.5% of the power.
Yaskawa provides an "Energy Savings Predictor" tool to help engineers visualize these savings. In many commercial applications, the Return on Investment (ROI) for installing a VFD on a large motor is often realized within 12 to 24 months through reduced utility bills alone.
Conclusion
Yaskawa HVAC drives offer a turnkey solution to modernize building controls, ensuring systems are both energy-efficient and compliant with power quality standards like IEEE 519. By selecting the appropriate model—such as the HV600—and configuring it correctly with embedded building protocols, facility managers can significantly reduce operating costs while maintaining optimal environmental comfort. With pumps, fans, and chillers operating on variable frequency, the result is a quieter, smarter, and more sustainable building.
Call to Action
Ready to upgrade your HVAC system? Browse our extensive catalog of Yaskawa HVAC VFDs on Chipsgate, featuring models from 0.5 to 500 HP. Contact us today for personalized advice on selecting and setting up the best drive for your application.
Frequently Asked Questions (FAQ)
Can I use any Yaskawa drive for my HVAC motor?
While general-purpose drives can spin the motor, it is best to use a drive that matches your specific application requirements. Yaskawa’s HVAC-specific drives (HV600, Z1000 series) include essential features like "Hand-Off-Auto" keypads, fire mode, and integrated building automation protocols that general industrial drives may lack.
What communication options are available?
Most Yaskawa HVAC drives feature embedded BACnet MS/TP, Modbus, and N2. For advanced integration, you can add option cards for Ethernet/IP or BACnet/IP. When designing your network, consider reading our comparison on communication protocols to ensure compatibility.
How much maintenance do VFDs require?
VFDs are solid-state devices and generally require low maintenance. The main tasks involve keeping cooling fans and heat sinks clean to prevent overheating. Yaskawa drives feature predictive maintenance monitors that can alert you to capacitor life or fan life status.
Can VFDs improve power factor?
Yes. VFDs effectively isolate the motor's reactive power demand from the utility. The input power factor of a VFD is typically near unity (0.95 or higher) regardless of motor speed, eliminating the need for external power factor correction capacitors.
Are there incentives for installing VFDs?
Yes, many utility companies and government bodies offer rebates for energy-efficiency upgrades. Retrofitting VFDs on fans and pumps usually qualifies for these incentives due to the verifiable energy reduction.
