Unleashing Advanced Automation: A Deep Dive into Allen-Bradley PLCs

In the world of industrial automation, where precision, reliability, and speed are paramount, Allen-Bradley PLCs from Rockwell Automation stand as a cornerstone technology. Powering some of today’s most demanding factory systems, these programmable logic controllers are the brains behind everything from high-speed packaging lines to mission-critical process control. This guide explores how the premier ControlLogix® and CompactLogix™ families boost manufacturing efficiency, enhance system security, and provide a scalable platform for building the smart machines of the future.

By ZhuoMingyu
5 min read

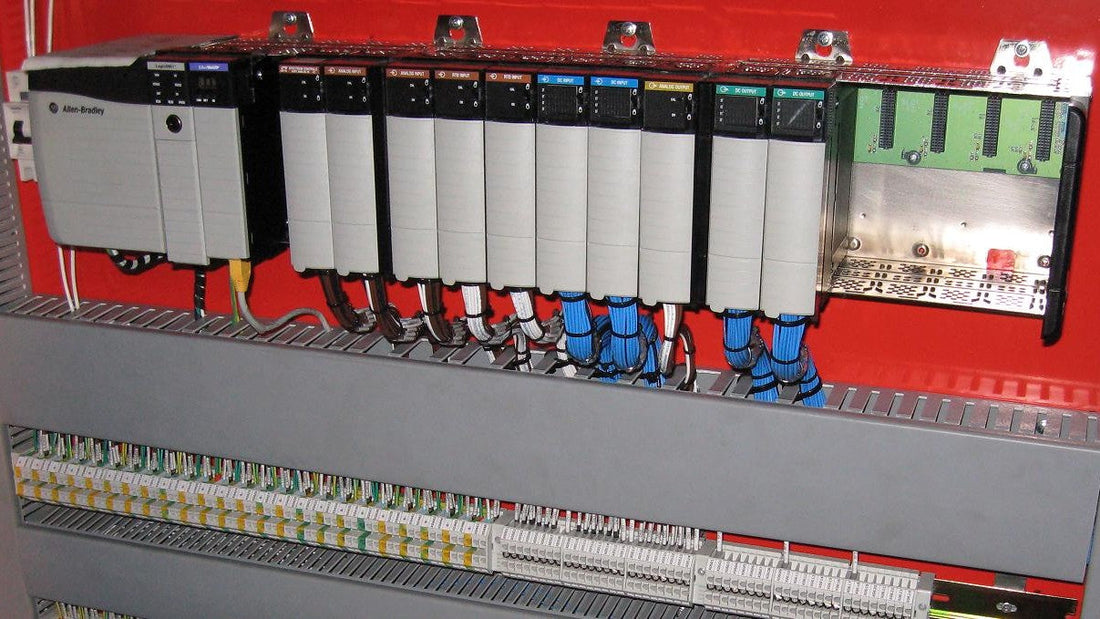

an industrial control panel

The Foundation: Studio 5000 and a Unified Network

The power of the modern Allen-Bradley ecosystem lies in its integrated approach. Instead of treating standard control, safety, and motion as separate disciplines, Rockwell Automation unifies them through a common software environment and a single network protocol. This dramatically simplifies development, reduces hardware costs, and streamlines maintenance.

Studio 5000 Logix Designer® Environment

At the heart of every Allen-Bradley project is the Studio 5000 Logix Designer environment. This is more than just programming software; it's a unified design platform where engineers can configure controllers, program automation logic, and set up device networks—all within one project. Key benefits include:

  • Integrated Development: Standard and safety logic can be developed and tested together, eliminating the need for separate tools and reducing commissioning time.
  • Multi-Language Support: Engineers can choose the best programming language for the task, including Ladder Diagram (LD), Function Block Diagram (FBD), Structured Text (ST), and Sequential Function Chart (SFC).
  • Scalability: A single project file can scale from a small machine-level CompactLogix controller to a plant-wide ControlLogix system, making code reuse and system expansion seamless.

EtherNet/IP and the Common Industrial Protocol (CIP)

Allen-Bradley controllers natively communicate over EtherNet/IP™, an industrial Ethernet network that leverages the Common Industrial Protocol (CIP). CIP is the magic that allows I/O, safety, motion control, and information to coexist on a single network. This unified approach means you can network distributed I/O, drives, and safety devices with minimal wiring, simplifying the physical architecture of your control system. Modern controllers, like the CompactLogix 5380, include embedded Gigabit Ethernet ports that support advanced features like CIP Safety™, Device Level Ring (DLR) for network redundancy, and real-time motion synchronization.

Key Takeaways

  • Allen-Bradley PLCs from Rockwell Automation offer a unified platform for control, safety, and motion.
  • The Studio 5000 environment streamlines development and reduces commissioning time.
  • EtherNet/IP with CIP enables a single-network architecture, simplifying wiring and improving data access.
  • Modern Logix controllers feature integrated safety, advanced motion capabilities, and built-in cybersecurity.

Choosing Your Platform: ControlLogix vs. CompactLogix

While both families share the same core Logix engine, they are tailored for different application scales. Selecting the right model is crucial for balancing performance, cost, and future scalability.

Allen-Bradley ControlLogix and CompactLogix modules provide scalable control solutions.

ControlLogix: For High-Performance, Plant-Wide Systems

The ControlLogix platform is the flagship offering, designed for applications requiring the highest levels of performance, capacity, and availability. It's the ideal choice for large, distributed systems and critical processes.

  • Unmatched Scalability: ControlLogix systems can manage thousands of I/O points across a vast network, making them suitable for controlling entire production facilities.
  • High Availability: Full redundancy is supported at the controller, network, and I/O levels, ensuring no single point of failure in applications where downtime is unacceptable, such as in power generation or chemical processing.
  • Extreme Performance: With powerful processors, these controllers excel at complex motion control with a large number of synchronized axes and fast control loops required in industries like metals or paper converting.

CompactLogix: For Powerful, Machine-Level Control

The CompactLogix platform offers the power of the Logix engine in a smaller, more cost-effective package. It is perfect for mid-range, machine-level applications that still demand high performance and advanced features.

  • Right-Sized Control: The family, including the powerful 5380 series, is designed to provide the exact amount of control needed for a specific machine or process, from simple standalone equipment to complex, multi-axis assembly lines.
  • Integrated Motion and Safety: Many CompactLogix controllers offer integrated motion on EtherNet/IP for up to 32 axes and can execute safety logic up to SIL 3/PLe, providing a compact and powerful solution for advanced machine design.
  • Network Flexibility: With dual Gigabit Ethernet ports, these controllers support Device Level Ring (DLR) or linear topologies, providing network resiliency without the need for external switches.

Advanced PLC Applications in Modern Manufacturing

Allen-Bradley systems excel in applications where reliability, precision, and data integration are non-negotiable. Here are some common scenarios where their advanced features deliver tangible value.

High-Speed Synchronized Motion

In packaging and material handling, PLCs must synchronize conveyors, fillers, labelers, and robotic arms in fast, precise loops. Using CIP Motion™ and CIP Sync™, CompactLogix and ControlLogix systems can coordinate dozens of axes with microsecond accuracy over a standard EtherNet/IP network, boosting throughput and ensuring product quality.

Integrated Machine Safety

Traditional safety systems required separate relays, controllers, and complex wiring. GuardLogix® controllers embed safety logic directly into the PLC. A single ControlLogix or Compact GuardLogix rack can handle both standard and safety-rated code up to SIL 3/PLe (the highest practical levels for machine safety). This simplifies design, reduces the hardware footprint, and provides advanced safety diagnostics directly within the control system.

Smart Manufacturing and IIoT Integration

Modern Allen-Bradley controllers are data-rich devices. They support CIP Security™, allowing encrypted and authenticated communication with higher-level systems like PlantPAx® and cloud applications. This secure data pipeline enables predictive maintenance and advanced analytics by exporting real-time operational data via OPC UA or MQTT gateways, helping engineers monitor equipment health and optimize performance.

Implementation Best Practices

To maximize the value of your Allen-Bradley system, follow these design and implementation best practices:

  1. Plan for Scalability and Security: Select a controller with enough memory and processing power for future expansion. From the start, plan to implement Rockwell’s CIP Security features (available on Logix 5380 and newer) to enable authenticated, encrypted communication.
  2. Design a Resilient Network: Use Device Level Ring (DLR) or other redundant EtherNet/IP topologies to eliminate network downtime. Clearly label and document your I/O points and network infrastructure.
  3. Standardize Your Code: Develop and use well-documented, modular programming templates. This makes troubleshooting easier and simplifies code reuse across multiple machines.
  4. Manage Your Projects: Always back up your Studio 5000 Logix projects and controller firmware. Use version control to track changes, especially in validated environments.

Chipsgate offers a broad inventory of Allen-Bradley PLC controllers, I/O modules, and accessories. Ensure you select the right family—ControlLogix, CompactLogix, or MicroLogix—based on your specific I/O count, performance needs, and application complexity.

Frequently Asked Questions (FAQ)

Q: What industries commonly use Allen-Bradley PLCs?
A: Allen-Bradley PLCs are widely used in automotive, food & beverage, life sciences, consumer packaged goods, and general manufacturing. Their scalability and global support make them suitable for both high-speed discrete manufacturing lines and continuous process plants.

Q: How do Allen-Bradley PLCs integrate with other systems like SCADA?
A: They use EtherNet/IP (CIP) natively for plant-floor communication. For integration with SCADA, MES, or cloud platforms, they can connect via OPC UA or MQTT, often through dedicated gateways or communication modules. Rockwell’s FactoryTalk® software suite also provides extensive tools for data visualization and analytics.

Q: Are safety functions really built into the PLC?
A: Yes. The GuardLogix and Compact GuardLogix controller families include integrated safety capabilities certified up to Safety Integrity Level (SIL) 3 and Performance Level (PLe). This allows a single controller to execute both standard and safety logic, simplifying machine design and compliance.

Q: How do I choose the right Allen-Bradley PLC model?
A: The choice depends on three main factors: I/O count, motion axes, and required performance/availability. ControlLogix is for large, high-performance, or redundant systems. CompactLogix is for mid-size, machine-level control. MicroLogix is for smaller, standalone systems. Chipsgate’s catalog helps you compare Allen-Bradley PLC models by features, performance, and price.
