Driving Efficiency: Mitsubishi MELSEC PLC in Automotive Manufacturing

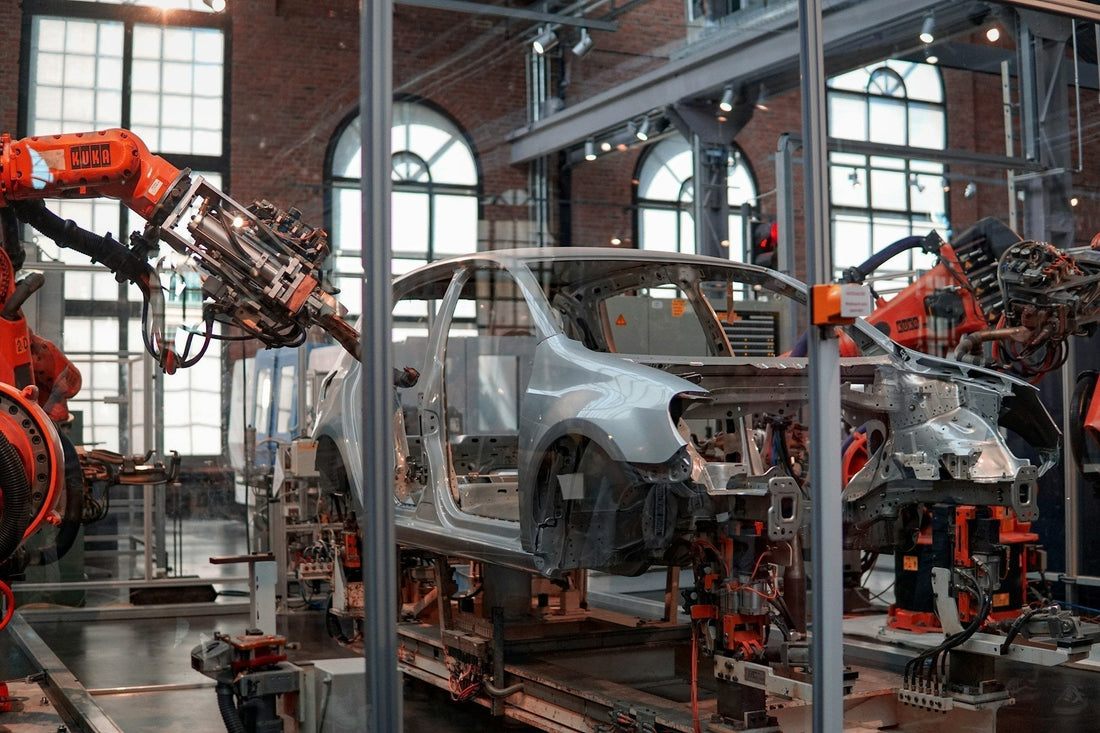

Precision in motion: An automotive assembly line utilizes high-speed automation and real-time data networking—powered by solutions like Mitsubishi’s MELSEC PLCs and CC-Link IE—to minimize downtime and maximize throughput.

Introduction

Automotive manufacturers face intense pressure to boost throughput and maintain impeccable quality standards. In an industry where a minute of downtime can cost thousands of dollars, visibility into the production line is critical. Mitsubishi Electric’s MELSEC PLCs are a staple in this sector due to their robustness and advanced networking features.

But how does this hardware translate into tangible business results? This article examines a specific Mitsubishi PLC automotive manufacturing use case involving FCC (Adams), a major clutch assembly manufacturer. We will explore how they transitioned from a reactive, paper-based reporting system to a proactive, automated environment. By integrating reliable Mitsubishi Electric PLCs with industrial PCs, the facility eliminated reporting lags and dramatically improved their response times to faults.

Background: Challenges in Automotive Assembly

Before the upgrade, the assembly line operated with a significant blind spot. The primary challenge was manual data collection. Operators were required to use pen and paper to record production counts, scrap rates, and technical issues at each station. This manual entry was not only prone to human error but also introduced a significant delay in information flow.

The impact on downtime was severe. With dozens of stations per line, small faults often went unnoticed by management until the end of the shift. If a machine stopped, the line manager might not know the root cause—or that the stoppage had even occurred—until reviewing the paper logs the following day. To remain competitive, the plant needed to move away from legacy methods and adopt a modern approach. For those facing similar hurdles, reading a modernization guide can be a crucial first step in understanding the transition process.

Mitsubishi’s Solution Overview

The facility opted for a solution built on the reliability of the Mitsubishi MELSEC PLC case study framework. The architecture was designed to bridge the gap between the factory floor and management analysis without disrupting existing operations.

1. MELSEC PLC Controllers

The plant was already utilizing Mitsubishi MELSEC PLCs and servo drives for motion control. The upgrade strategy involved leveraging these existing controllers for enhanced data acquisition. By tapping into the logic already present in the controllers, the engineering team could extract status codes and fault data without completely re-engineering the control loops.

2. Industrial PC (MI3000)

To visualize the data, the team introduced the Mitsubishi MI3000 Industrial PC (IPC) on Line 1. Unlike a standard office computer, the MI3000 is ruggedized for factory environments. It served as the central hub, aggregating data from all stations and running the HMI (Human Machine Interface) software.

3. CC-Link IE Network

Connecting the PLCs to the IPC required a robust network. The engineers deployed CC-Link IE Field, a 1 Gigabit per second (Gbps) industrial Ethernet network. Unlike legacy fieldbuses that struggle with bandwidth, CC-Link IE Field ensured that data from dozens of stations could stream simultaneously without "traffic jams," ensuring deterministic performance.

Implementation Details

The implementation focused on visibility and speed. The MI3000 was configured to gather PLC data and automatically generate production reports in real time. Alarms and downtime events were highlighted immediately on the operator screens.

The hardware setup included MELSEC L-series PLCs equipped with appropriate I/O modules at each station. These were networked via CC-Link IE switches to the central MI3000. On the software side, the team utilized Mitsubishi’s engineering environment (such as GT Works3 or iQ Works) to design the interface and data logging logic. Because the plant staff were already proficient with Mitsubishi’s architecture, training time was minimal, allowing for a rapid rollout.

Results and Benefits

The transition to a Mitsubishi PLC efficiency model yielded immediate results:

• Faster Reporting: The 24-hour delay inherent in paper reporting was eliminated. Managers now possess same-day, minute-by-minute visibility of throughput and downtime.
• Improved Uptime: With instant fault detection, maintenance teams can address stoppages the moment they occur. This proactive approach significantly boosted overall line availability.
• Flexibility for Future Expansion: The network-centric design allows for easy scalability. New machines can be added to the CC-Link IE network without extensive rewiring.
• ROI Highlights: By choosing a hardware-based solution, the plant avoided the recurring monthly fees often associated with third-party SCADA software. Furthermore, the reduction in data-entry errors lowered administrative costs.

This success story aligns with broader industry trends where real-time data is essential for predictive maintenance, allowing teams to fix issues before they cause catastrophic failures.

Conclusion

This case demonstrates the strength of Mitsubishi MELSEC PLCs in automotive automation. By combining familiar, robust PLC infrastructure with the high-speed CC-Link IE Field network, the manufacturer transformed a slow, error-prone reporting process into a streamlined, automated system. The result was quicker decision-making and reduced downtime.

Any manufacturer can replicate these benefits: the key is utilizing trusted automation hardware and fast, deterministic networks to gain total control over production data.

Call to Action

Looking to modernize your assembly line? Browse our selection of Mitsubishi Electric PLCs and CC-Link networking product at Chipsgate. Contact our automation experts today to plan an upgrade tailored for your automotive or manufacturing application.

Frequently Asked Questions (FAQ)

What is CC-Link IE Field and why use it?

CC-Link IE Field is Mitsubishi’s industrial Ethernet network running at 1 Gbps full duplex. It connects PLCs, drives, and sensors on a single network. Its gigabit speed and deterministic performance ensure no data bottlenecks occur, even when communicating with many nodes simultaneously. It is ideal for large assembly lines needing real-time data transparency.

Can MELSEC PLCs connect to other networks?

Yes. MELSEC PLCs support various networks including CC-Link (legacy), EtherNet/IP, Profibus (via gateway), and EtherCAT (on MELSEC iQ-R). While CC-Link IE provided the best integration in this case, the PLCs are flexible enough to adapt to other infrastructure standards.

Do Mitsubishi PLCs require special programming skills?

Mitsubishi uses GX Works or iQ Works software, which supports the IEC 61131-3 standard. For engineers familiar with Ladder Logic or other IEC languages, the programming is straightforward. In this case study, the customer’s familiarity with the software significantly reduced implementation time.

How does Mitsubishi PLC reliability compare?

MELSEC PLCs are engineered for harsh industrial environments, withstanding wide temperature ranges and vibration. They are widely used in automotive plants globally due to their proven stability, long service life, and extensive global support network.

Is the MI3000 required, or can a regular PC do the job?

The MI3000 is an industrial PC optimized for PLC data tasks, featuring built-in CC-Link IE interfaces and a hardened design. While a standard PC could technically run visualization software, using the MI3000 simplifies integration, removes hardware compatibility issues, and ensures reliability in a factory floor environment.
