Industrial Machine Vision: Guide to Cameras, Lighting, and Inspection

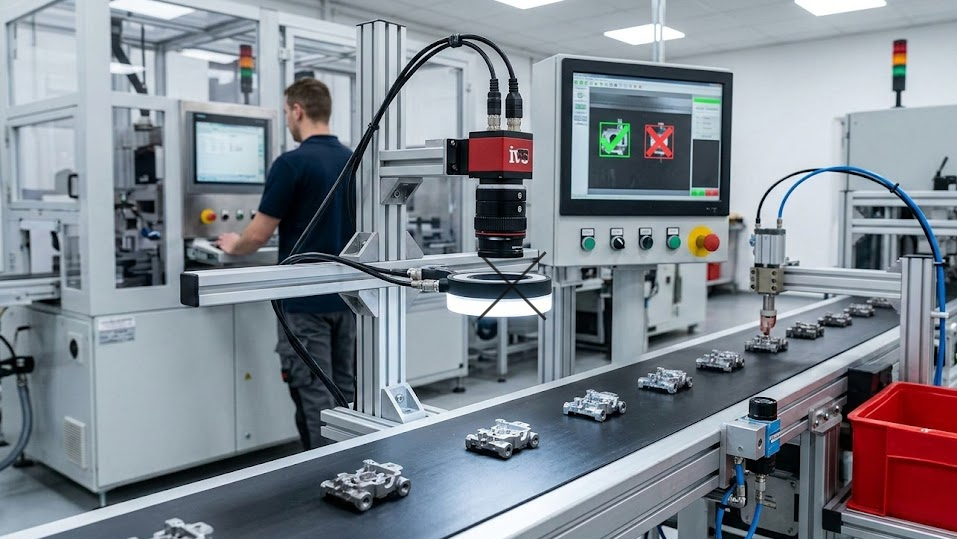

A typical machine vision setup integrated into a production conveyor for real-time quality control.

What is a Machine Vision System?

A machine vision system uses imaging to make automated decisions on the factory floor. These systems have transformed quality control by replacing manual inspection with solutions that deliver consistent accuracy at high speeds. Typical applications range from identifying microscopic scratches on semiconductor wafers to guiding high-speed pick-and-place robots.

The core architecture consists of five primary elements:

• Industrial Cameras: These use CMOS or CCD sensors to capture raw image data.
• Lenses: Optics that focus light onto the sensor, determining the field of view and magnification.
• Lighting: Specialized LED arrays (rings, bars, or domes) used to highlight specific features of the workpiece.
• Controllers: Hardware that processes the image, which can be embedded in the camera or located in an external industrial PC.
• Vision Software: Algorithms for edge detection, pattern matching, and deep learning that translate pixels into actionable data.

Camera and Optics Selection

Resolution and Sensor Type

Choosing the correct resolution is the first step in system design. You must ensure that each pixel corresponds to the smallest feature or defect you intend to detect. For instance, if you need to detect a 0.1mm scratch over a 50mm field of view, a multi-megapixel sensor is required to provide sufficient sampling. While color cameras are necessary for color-based sorting, monochrome cameras are generally preferred for inspection because they offer higher sensitivity and sharper contrast.

Frame Rate and Interface

The camera's frame rate must match the production line speed. High-speed lines often require cameras capable of 60+ frames per second (FPS) or line-scan cameras for continuous web inspection. To handle this data, engineers must select an appropriate interface. Common standards include GigE Vision for long-distance cabling and USB3 Vision for high-bandwidth, short-distance applications. When choosing the right industrial cameras, it is critical to verify that the interface matches your existing network infrastructure.

Optical Precision

Standard lenses can introduce perspective distortion, which is problematic for metrology. In these cases, telecentric lenses are utilized to provide a constant magnification regardless of the object's distance from the lens. Ensuring the camera is mounted perpendicular to the target is a fundamental requirement for maintaining measurement accuracy.

Illumination Essentials

Even the most advanced sensor cannot compensate for poor lighting. The goal of machine vision lighting is to create high contrast between the features of interest and the background while eliminating unwanted reflections.

Different lighting techniques reveal different characteristics of the same object.

• Backlighting: Places the light source behind the object to create a silhouette, ideal for checking outer dimensions or hole placement.
• Darkfield Lighting: Uses low-angle light to highlight surface textures and scratches, making them appear bright against a dark background.
• Polarized Light: Essential for reducing glare when inspecting highly reflective surfaces like polished metal or glass.

Smart Cameras vs. PC-Based Vision

Engineers must decide between a decentralized or centralized processing architecture. Smart Cameras are all-in-one units that combine the sensor and processor. They are compact, easier to mount, and ideal for straightforward tasks like barcode reading or presence detection.

Conversely, PC-Based Systems connect multiple cameras to a powerful industrial computer. These are necessary for complex inspections involving AI-driven defect detection or high-speed processing of large image files. While PC-based systems offer more flexibility and power, they involve higher upfront costs and more complex integration requirements. For many facilities, optimizing industrial automation involves a mix of both, using smart cameras for local tasks and PC systems for centralized quality oversight.

Integration with Automation

A vision system is only effective if it can communicate results to the rest of the line. Vision controllers typically interface with advanced PLC systems or robotic controllers using digital I/O for simple pass/fail signals, or industrial Ethernet protocols (like EtherNet/IP, PROFINET, or OPC UA) for complex data strings. Ensuring compatibility between your vision hardware and your PLC is vital for synchronized rejection of defective parts or real-time robot guidance.

Common Applications

Defect and Flaw Detection

Vision systems excel at 100% inspection for surface flaws such as stains, cracks, or missing coatings. This typically requires uniform brightfield lighting and high-resolution monochrome sensors to ensure every pixel is analyzed for deviations from a "golden" template.

Part Alignment and Guidance

In robotic assembly, vision systems provide coordinates to the robot controller. An overhead camera locates a part's X-Y position and rotational orientation, allowing the robot to adjust its grip dynamically. This eliminates the need for expensive mechanical fixtures and allows the line to handle multiple part variants seamlessly.

Conclusion

Machine vision brings a level of intelligence and repeatability to quality control that human inspection cannot match. By meticulously selecting the right cameras, optics, and lighting, and ensuring they are integrated with robust software, factories can achieve higher throughput and significantly reduced defect rates. For procurement and engineering teams, the focus should remain on a holistic system design where every component is matched to the specific environment and task requirements. Chipsgate provides a comprehensive range of machine vision sensors and imaging accessories to support these critical automation projects.

Frequently Asked Questions

What is the difference between a smart camera and a PC-based vision system?

A smart camera is an all-in-one device (camera + processor + I/O), ideal for simpler, localized tasks. A PC-based system uses separate cameras and a powerful industrial PC to handle complex, multi-camera inspections.

How important is lighting in machine vision?

It is arguably the most critical factor. Without consistent, high-contrast lighting, software cannot reliably distinguish between a product feature and background noise, leading to false rejects.

How do I determine the required camera resolution?

Calculate the smallest defect size you need to see. Ensure that at least 3 to 4 pixels cover that smallest feature within your total field of view to ensure reliable detection.
