Harnessing Siemens PLCs for Smart Manufacturing: A Deep Dive

Siemens SIMATIC PLCs are a powerhouse in smart manufacturing, but their true strength lies in the Totally Integrated Automation (TIA) Portal ecosystem. This guide provides a deep dive into the high-performance S7-1500 and versatile S7-1200 controllers, exploring how the TIA Portal streamlines engineering from PLC to HMI. Learn how built-in PROFINET, OPC UA, and MQTT support create a seamless link from the factory floor to the cloud, enabling the data-driven solutions required for Industry 4.0. Discover best practices for building scalable, secure, and future-proof automation systems.

By ZhuoMingyu
6 min read

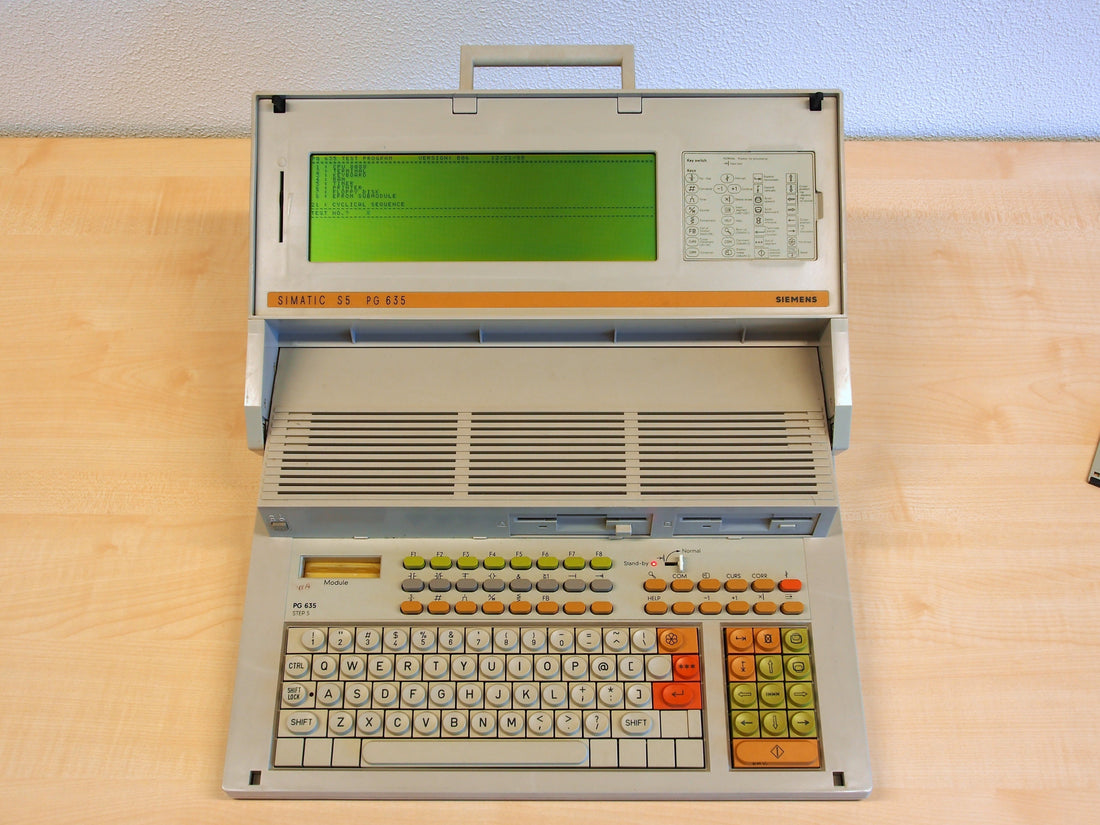

Siemens SIMATIC PLC

Siemens SIMATIC PLCs are a cornerstone of modern, integrated automation systems.

Introduction: The Engine of Digitalized Production

In the landscape of modern automation, Siemens SIMATIC PLCs stand as a foundational technology, forming the control backbone of countless high-tech manufacturing systems across the globe. From compact, machine-level controllers to powerful, plant-wide platforms, the SIMATIC family is engineered for the demands of Industry 4.0. These controllers are more than just logic processors; they are data hubs, safety guardians, and motion coordinators integrated into a single, powerful ecosystem. This guide explores how advanced SIMATIC controllers, powered by the TIA Portal platform, enable manufacturers to build flexible, efficient, and data-rich systems ready for the challenges of smart manufacturing.

Key Takeaways

  • Siemens SIMATIC PLCs offer a scalable and integrated platform for everything from small machines to entire factories.
  • The Totally Integrated Automation (TIA) Portal is a unified software environment that dramatically accelerates development and reduces errors.
  • Connectivity is a core strength, with built-in PROFINET for real-time control, plus native support for OPC UA and MQTT for IIoT integration.
  • The S7-1500 series provides high-performance control for complex tasks, while the S7-1200 offers a powerful solution for compact applications.
  • Integrated safety and motion control capabilities simplify machine design and enhance performance.

The TIA Portal: A Unified Engineering Framework

The true power behind modern Siemens automation is the Totally Integrated Automation (TIA) Portal. This is not just software for programming a PLC; it is a comprehensive engineering environment designed to manage nearly every aspect of an automation project. By providing a single interface for PLCs, HMIs, drives, and network configuration, the TIA Portal delivers significant advantages:

  • Accelerated Development: Engineers can program complex control logic, design HMI screens, configure motion axes, and set up network communications all within one project file. Drag-and-drop functionality between devices (e.g., from a PLC tag to an HMI field) eliminates manual data entry and reduces errors.
  • Simplified Complexity: The platform supports all modern IEC 61131-3 programming languages, including Ladder Logic (LAD), Function Block Diagram (FBD), and Structured Text (SCL), allowing developers to use the best language for each task.
  • Integrated Diagnostics: System-wide diagnostic tools are built directly into the framework. When a fault occurs on a drive or I/O module, the error is automatically reported up through the PLC to the HMI, often with plain-text messages that guide operators directly to the problem.

Advanced Connectivity: From the Sensor to the Cloud

A key strength of the SIMATIC platform is its commitment to open and powerful communication. Siemens controllers are designed to be the central data hub of a machine, seamlessly exchanging information on the factory floor and with higher-level systems.

PROFINET: The Real-Time Fieldbus

All modern SIMATIC controllers include built-in PROFINET ports. As a leading industrial Ethernet standard, PROFINET provides deterministic, real-time communication for controlling I/O, variable speed drives, and multi-axis motion systems. It also supports flexible network topologies (line, star, ring) and includes media redundancy protocols (MRP) to ensure high network availability.

OPC UA and MQTT: The Gateway to Industry 4.0

Beyond the field level, Siemens PLCs are equipped for the Industrial Internet of Things (IIoT).

  • OPC UA: Most S7-1500 controllers have an integrated OPC UA server. This provides a secure, platform-neutral, and internationally standardized way to expose production data to MES, SCADA, and other enterprise systems. It uses a rich information model, ensuring data is transferred with context.
  • MQTT: For lightweight cloud telemetry, MQTT is also supported. This allows SIMATIC PLCs to efficiently publish data to cloud platforms like Siemens MindSphere, AWS, or Azure for advanced analytics, remote monitoring, and predictive maintenance. Third-party modules, like Softing's edgeConnector, can also link Siemens PLCs directly to these cloud services.

Choosing Your Platform: S7-1500 vs. S7-1200

The SIMATIC family is highly scalable, with two main controller series covering the majority of modern applications.

SIMATIC S7-1500: The High-Performance Powerhouse

The S7-1500 series represents the top tier of Siemens PLCs, designed for the most demanding applications.

  • Performance: With fast backplane buses and powerful processors, the S7-1500 excels at high-speed logic execution, complex PID loops, and sophisticated motion control tasks.
  • Scalability: The modular design allows the system to be scaled up with a wide range of I/O, technology, and communication modules to fit nearly any application size.
  • Integrated Features: A built-in display on the CPU provides direct access to diagnostics and network settings without needing a programming laptop, a feature highly valued by maintenance teams.
This makes the S7-1500 the ideal choice for complex machinery, entire production lines, and time-critical processes in industries like automotive and pharmaceuticals.

SIMATIC S7-1200: The Compact and Versatile Controller

The S7-1200 series offers a powerful set of features in a compact, cost-effective design.

  • All-in-One Design: The CPU includes integrated digital and analog I/O, making it perfect for smaller, standalone machines where space and cost are primary concerns.
  • Surprising Power: Despite its size, the S7-1200 supports advanced functions like PID control, basic motion control, and IIoT communication, making it a highly capable controller for a wide range of tasks.
  • Flexible Expansion: The system can be easily expanded with additional signal boards and I/O modules as application needs grow.
The S7-1200 is the workhorse for machine builders and applications requiring powerful logic in a compact footprint.

Implementation Best Practices

To get the most out of your Siemens automation system, adhere to these best practices:

  1. Design a Robust Network: Use managed switches to segment your network and control traffic. Implement PROFINET ring topologies for media redundancy to ensure your I/O remains available even if a cable breaks.
  2. Prioritize Security: Use the security features built into the TIA Portal and S7-1500 controllers. Create user accounts with specific permissions, encrypt communications using TLS for OPC UA, and follow IEC 62443 security concepts.
  3. Leverage Distributed I/O: For large machines or production lines, use distributed I/O families like the ET 200SP or ET 200MP. This places I/O racks close to the sensors and actuators, drastically reducing wiring costs and simplifying central control panels.
  4. Keep Software and Firmware Updated: Regularly update your TIA Portal software and PLC firmware to access the latest features, performance improvements, and security patches.

Frequently Asked Questions (FAQ)

Q: What software is used to program Siemens PLCs?
A: The primary software is the TIA Portal (Totally Integrated Automation) suite. This single environment is used for programming SIMATIC PLCs, designing HMI screens (WinCC), configuring drives (Startdrive), and setting up networks. Older projects from STEP 7 Classic can also be migrated into the TIA Portal.

Q: Can Siemens PLCs perform advanced motion control?
A: Yes. The S7-1500 "T-CPU" (Technology CPU) variants are specifically designed for advanced motion control. They can manage complex, synchronized motion sequences for multiple axes, including gearing and camming functions, and are tightly integrated with the Siemens SINAMICS drive family.

Q: What safety options are available for Siemens PLCs?
A: Siemens offers a fully integrated safety solution called Safety Integrated. Fail-safe (F-series) PLC CPUs and I/O modules can be combined with standard modules in the same rack. Safety logic is programmed in the TIA Portal, and communication runs over the standard PROFINET cable using the PROFIsafe protocol, allowing one controller to handle both standard and safety tasks up to SIL 3.

Q: How do I choose the right Siemens PLC for my project?
A: The choice depends on your application's needs. Use the S7-1200 for small- to medium-sized standalone machines. Choose the S7-1500 for large, high-performance, or high-speed systems that require advanced motion, extensive I/O, or maximum scalability. Always consider the required processing speed, memory, I/O count, and any special technology functions needed. You can visit Chipsgate’s Siemens PLC category to compare available models.

Conclusion: Building the Future of Manufacturing

Siemens SIMATIC PLCs, powered by the TIA Portal, are more than just automation components; they are a comprehensive platform for building the interconnected, data-driven systems that define Industry 4.0. By providing a scalable hardware portfolio, unified engineering software, and a powerful suite of connectivity options, Siemens empowers engineering teams to create robust, efficient, and future-proof solutions. Leveraging this integrated ecosystem is a strategic step toward unlocking new levels of productivity, flexibility, and intelligence in any manufacturing environment.

Ready to build a more advanced automation system? Explore our full range of Siemens SIMATIC products or contact a ChipsGate specialist to discuss your project requirements.
