Troubleshooting HMI-PLC Communication Errors: A Technical Guide
Losing the link between your Human-Machine Interface (HMI) and Programmable Logic Controller (PLC) leaves operators flying blind. This practical guide covers common diagnostic steps for identifying hardware vs. software faults, resolving protocol mismatches, and restoring connectivity quickly to minimize production downtime.

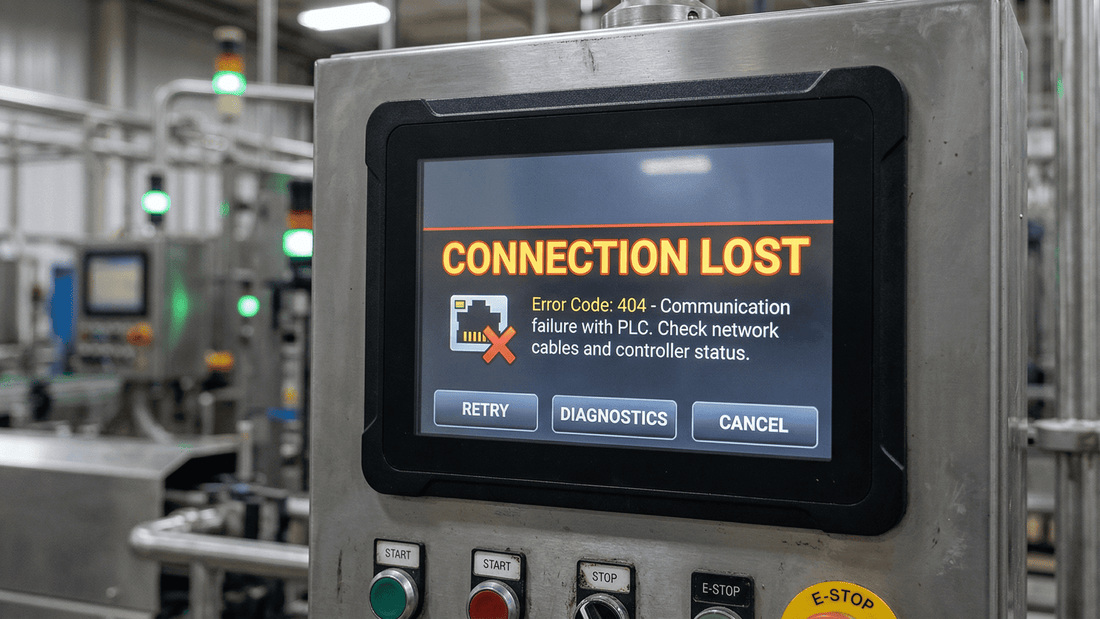

In high-speed industrial automation, the Human-Machine Interface (HMI) is the critical window into process variables and machine health. When a "PLC Communication Error" or "HMI Connection Lost" alert appears, that window slams shut. This sudden "machine blindness" triggers immediate unplanned downtime, safety risks, and lost productivity.
Restoring communication requires a systematic diagnostic approach. Before replacing hardware, engineers must determine if the fault originates in the physical layer, the network configuration, or the software logic. Establishing a robust network starts with choosing the right PLC communication protocol—whether Modbus, Profinet, or EtherCAT—to ensure long-term stability and easier troubleshooting.
Key Takeaways
- Audit the physical layer first: Check cables, switches, and ports before adjusting software logic.
- Configuration Mismatches: Incorrect baud rates or IP subnets cause the majority of new deployment failures.
- Utilize Diagnostics: PLC diagnostic buffers can pinpoint the exact millisecond a communication drop occurred.
Phase 1: Validating Physical Layer Integrity
Most troubleshooting HMI PLC communication tasks begin at the hardware level. Environmental stress and physical degradation frequently disrupt signals, rendering even the most perfect software configurations useless.
Cables and Connectors
Inspect all Ethernet or Serial (RS-232/RS-485) cables for insulation damage, sharp bends, or loose connectors. For Ethernet links, confirm that the RJ45 pins remain straight and the cable clicks firmly into the port. If the link LED on the industrial PLC system or HMI port is unlit or blinking irregularly, swap the cable with a known-good spare to rule out internal wire breaks.
Electromagnetic Interference (EMI)
Industrial environments are electrically "noisy." Communication cables running parallel to high-voltage motor leads or Variable Frequency Drives (VFDs) often suffer packet loss from EMI. To prevent this, use shielded twisted-pair (STP) cabling, ensure shields are grounded at a single point, and maintain physical separation between signal and power lines.
Phase 2: Auditing Network and Protocol Handshakes
If the physical link is solid, the fault likely lies in the digital handshake. Whether you use hardware from Siemens, Omron, or Allen-Bradley, communication parameters must match exactly for data exchange to occur.
IP Address and Subnet Masks
For Ethernet/IP or Modbus TCP/IP, the HMI and PLC must reside on the same subnet. Use a laptop to ping both the HMI display panels and the PLC to verify they are reachable. Common pitfalls include duplicate IP addresses on the network or a mismatch in the subnet mask (e.g., using 255.255.255.0 when the gateway expects 255.255.0.0).
Protocol and Node Address
In serial communication, a mismatch in baud rate (e.g., 9600 vs. 19200), parity, or stop bits prevents data flow. Ensure the "Node Address" or "Station Number" defined in the HMI software matches the hardware address assigned in the PLC configuration. Even a single-digit discrepancy will keep the HMI screen offline.
Phase 3: Resolving Software Logic and Tag Mismatches
Once the network handshake is established, the HMI must know exactly where to retrieve data. This involves precise holding registers and tag mapping.
If the HMI displays values as hashes (####) or question marks, the communication link is likely active, but the requested tag name or memory address does not exist in the PLC program. Verify that the PLC project is fully downloaded and that any changes to Data Blocks (DBs) or global variables have been updated and recompiled in the HMI project software.
| Brand | Common Error Code | Likely Cause | Solution |
|---|---|---|---|
| Siemens (S7) | 80C4 / 7002 | Temporary comms error or busy block. | Check T-block parameters; cycle CPU power. |
| Allen-Bradley | Code 01E | Connection timeout. | Verify RSLinx path and Ethernet hardware health. |
| Modbus TCP | Exception 02 | Illegal Data Address. | Verify the target holding register exists in the PLC. |
| General | No Response | Node address mismatch. | Match Baud rate and Station ID settings across devices. |
Conclusion
Troubleshooting HMI-PLC communication faults rarely requires immediate hardware replacement. By systematically moving from the physical layer through network protocols to software tags, you can isolate the specific failure point. This structured approach restores production faster and helps build a more resilient industrial network architecture.
