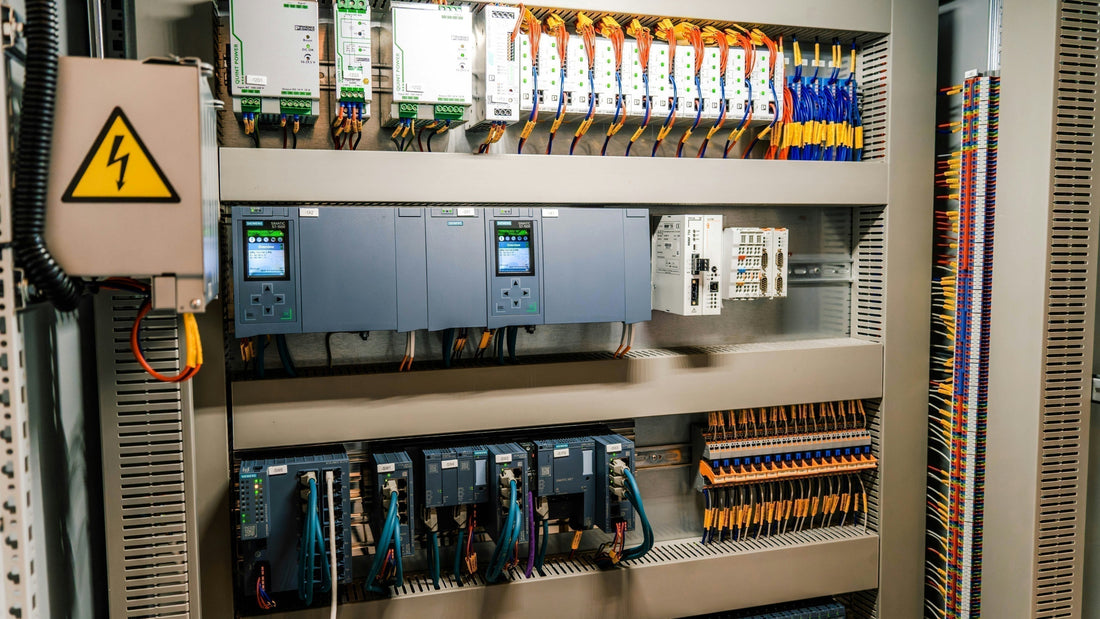

Siemens S7-1200 PLC Expansion Guide: Choosing CPUs and I/O Modules
Planning a Siemens S7-1200 PLC system? Properly matching your central controller with the right expansion modules is critical to preventing I/O bottlenecks, communication limits, and costly electrical cabinet redesigns.
In this hardware selection guide, we break down why the Siemens CPU 1214C paired with SM 1223 digital I/O modules provides the most balanced, scalable, and cost-effective foundation for OEM machine builders and legacy factory retrofits. Read on to explore technical specifications, real-world upgrade scenarios, and common configuration mistakes to avoid.
- The Siemens S7-1200 is a globally recognized, compact PLC platform ideal for small and medium automation.
- Properly matching the CPU with expansion modules prevents critical I/O limitations, communication bottlenecks, and costly cabinet redesigns.
- For many small and medium OEM machine builders, the CPU 1214C combined with SM 1223 Signal Modules provides a practical balance between processing capability, cost efficiency, and future expandability.
Small automation projects often encounter unexpected roadblocks when PLC expansion planning is overlooked. Many factories upgrading older machinery face identical challenges: existing PLCs lack sufficient I/O points, new sensors and actuators cannot interface without additional hardware, and legacy controllers introduce maintenance risks as spare parts become obsolete. Ultimately, an incorrect initial CPU selection can force expensive electrical cabinet modifications down the line.
The solution is not simply purchasing the most powerful PLC available. A reliable S7-1200 architecture requires a strategic alignment of CPU processing capability, digital and analog I/O requirements, network communication standards, and future expansion headroom. This guide breaks down S7-1200 hardware selection from three perspectives: CPU selection, expansion module configuration, and real-world retrofit implementation.
Understanding Siemens S7-1200 CPU Selection Before Adding Modules
The central processing unit (CPU) serves as the brain of an S7-1200 automation system. It determines the controller's processing performance, communication capabilities, technology functions, and the maximum supported hardware expansion.
When selecting an S7-1200 CPU, engineers should consider more than just the current I/O count. Program size, communication requirements, scan time expectations, technology functions, and future expansion plans all influence the most suitable CPU. Choosing a CPU with sufficient spare capacity can help avoid costly hardware upgrades as machine requirements evolve.
Why CPU 1214C is a Popular Choice for Machine Automation
The Siemens S7-1200 CPU 1214C is engineered specifically for compact automation systems that require moderate processing power alongside highly flexible expansion options.
- Model: 6ES7214-1AG40-0XB0
- Power Supply: 24V DC
- Onboard I/O: 14 Digital Inputs / 10 Transistor Outputs
- Communication: PROFINET interface
- Advanced Features: Supports high-speed counters and pulse outputs for basic positioning tasks, speed control applications, and simple motion-related functions.
Because of its balanced feature set, the CPU 1214C is heavily utilized across various applications, including packaging machines, conveyor systems, small assembly equipment, pump control systems, and general OEM machinery.
CPU Comparison Table
| Feature | Siemens S7-1200 CPU 1214C | Siemens S7-1200 CPU 1212C | Siemens S7-1500 CPU 1511 |
|---|---|---|---|
| Target Application | Small/medium machines | Small machines | Advanced automation |
| Processing Capability | Medium | Entry level | High performance |
| Integrated I/O | 14 DI / 10 DO | 8 DI / 6 DO | No integrated I/O, requires separate modules |
| Expansion Capability | High | Moderate | Very high |
| Communication | PROFINET | PROFINET | PROFINET + advanced functions |
| Pros | Balanced cost and scalability | Lower initial cost | Strong performance |
| Cons | Not suitable for complex motion | Limited expansion | Higher cost |
For deeper technical documentation, you can refer to the official Siemens SIMATIC S7-1200 system manual and product catalog.
Selecting the Right S7-1200 Expansion Modules
Expansion modules, officially referred to as Signal Modules (SM), allow automation engineers to expand the I/O capacity and functionality of an S7-1200 PLC without replacing the base CPU. Different module types support digital I/O, analog I/O, communication, and other application-specific functions.
Understanding Siemens S7-1200 Expansion Limits
Although the S7-1200 platform is designed for modular expansion, each CPU has hardware limitations that should be considered during system design. Engineers should verify the maximum number of supported Signal Modules (SM), Communication Modules (CM), available power budget, and addressing capacity before finalizing the control cabinet layout.
Proper planning helps prevent unnecessary controller upgrades or cabinet redesigns as machine requirements evolve.
Digital I/O Modules Solve the Most Common Expansion Problem
As machines evolve, upgrades typically demand additional inputs and outputs for new sensors, solenoid valves, safety signals, relays, and motor starters. Instead of rewiring complex relay logic, adding a digital I/O module cleanly expands system capacity. The SM 1223 is widely recognized as one of the most versatile expansion choices available.
- Model: 6ES7223-1BL32-0XB0
- Specifications: 16 Digital Inputs, 16 Digital Outputs
- Operation: 24V DC
- Advantage: Suitable for machine applications requiring a balanced combination of digital sensor inputs and actuator outputs, such as packaging equipment, conveyors, and assembly systems.
S7-1200 Module Selection Comparison
| Module | Application | Specifications | Advantages | Limitations | Price Range |
|---|---|---|---|---|---|
| SM 1221 DI Module | Sensor expansion | Digital inputs only | Low cost | No output control | $100–200 |
| SM 1222 DO Module | Actuator control | Digital outputs only | Simple output expansion | No input capability | $120–220 |
| SM 1223 DI/DO Module | Mixed machine control | 16 DI + 16 DO | Best balance for OEM machines | Limited analog capability | $180–350 |
| SM 1231 Analog Input | Process measurement | Analog signals | Temperature/pressure monitoring | Requires configuration | $150–300 |
Real-World S7-1200 Retrofit Scenario: Packaging Line Upgrade
To illustrate the value of correct CPU and I/O planning, let's examine a practical retrofit that successfully minimized production downtime.
Example Retrofit Scenario: Packaging Line Upgrade
In a typical packaging line retrofit scenario, an engineering team may migrate from an aging PLC architecture to a modern Siemens S7-1200 platform. This type of upgrade is commonly required when existing controllers lack sufficient I/O capacity, diagnostic features, or long-term spare part availability.
The Implementation Steps:
- Installed the Siemens S7-1200 CPU 1214C as the central PLC.
- Integrated an SM 1223 digital I/O module to accommodate the newly added photoelectric sensors and pneumatic actuators.
- Configured a standardized network using the native PROFINET interface.
- Tested the complete machine sequence thoroughly using TIA Portal.
- Optimized the PLC program structure and scan cycle performance to achieve reliable response times that meet the packaging machine's sequencing and control requirements.
Explore more hardware options in our Siemens PLC products catalog.
Common Retrofit Mistakes
Upgrading a control panel requires foresight. Avoid these frequent pitfalls:
- Mistake 1: Choosing a CPU based only on current I/O requirements. Better approach: Estimate future expansion requirements and reserve sufficient spare I/O capacity based on expected machine upgrades. Ensure your CPU has the network bandwidth for future communication needs.
- Mistake 2: Ignoring wiring compatibility. Better approach: Rigorously check voltage requirements, sink/source wiring configurations, and maximum output current limitations before powering the system.
- Mistake 3: Underestimating programming migration. Better approach: Utilize Siemens TIA Portal for integrated engineering, and use available simulation or offline testing methods where applicable before deployment, and always maintain a validated backup of the original logic.
Siemens S7-1200 Compared With Other Compact PLC Platforms
While the S7-1200 is robust, different PLC ecosystems provide unique advantages depending on geographical preferences and application specifics.
Multi-Brand Comparison
| Brand | Product Family | Strength | Weakness | Best Application |
|---|---|---|---|---|
| Siemens | S7-1200 | Strong global support, unified TIA Portal ecosystem | Steeper software learning curve | General machine automation |
| Omron | CP/NJ Series | Fast programming, strong motion integration | Smaller ecosystem in certain regions | Packaging machines, robotics |
| Schneider Electric | Modicon M241/M251 | Flexible IT/OT communication | Different software environment (EcoStruxure) | Machine builders requiring IoT |
| Mitsubishi | FX5U | Highly compact, cost-effective processing | Less unified engineering environment | Asian OEM applications, standalone machines |
How to Build a Future-Proof S7-1200 Automation System
A scalable PLC architecture directly reduces long-term upgrade costs. Follow this planning checklist for your next panel build:
- Select a CPU with an expansion margin: Don't bottleneck your system on day one.
- Use PROFINET-compatible devices: Ethernet-based industrial networking guarantees long-term support and rapid diagnostics.
- Standardize spare modules: Using standardized parts (like standardizing on the SM 1223) reduces your MRO inventory costs.
- Document everything: Maintain strict records of wiring schematics, IP addresses, and TIA portal software versions.
- Consider cybersecurity: Utilize the security features embedded in modern Siemens CPUs to protect machine data.
Conclusion
A successful Siemens S7-1200 deployment relies heavily on selecting the correct combination of CPU and expansion modules, rather than defaulting to the most expensive controller. For the vast majority of small and medium automation systems, the CPU 1214C delivers optimal processing power, while the SM 1223 module offers high-density, flexible digital I/O expansion. Paired with TIA Portal, this architecture simplifies both initial programming and lifecycle maintenance.
Next Step: Explore the Siemens S7-1200 PLC CPUs and expansion modules available for your next automation project to build a truly reliable control system.
FAQ
Can the Siemens S7-1200 CPU 1214C handle a complete packaging machine?
Yes. The CPU 1214C is intentionally designed for small and medium machine automation applications. It natively supports integrated digital I/O, high-speed counters, pulse outputs, and PROFINET communication. However, if your packaging line features extremely complex, highly synchronized multi-axis servo motion, a higher-performance controller like the S7-1500 may be required.
Can I add more I/O modules after installing an S7-1200 PLC?
Yes, the S7-1200 platform supports modular scalability through Signal Modules (SM). Automation engineers can seamlessly add digital, analog, and communication modules to the right side of the CPU depending on changing application requirements.
Is the SM 1223 better than using separate input and output modules?
It depends on your control panel's specific needs. The SM 1223 is highly efficient when a machine requires a balanced mix of both sensor inputs and actuator outputs, saving backplane space. However, separate, dedicated modules may be more cost-effective for specialized applications that require only one signal type.
Can the S7-1200 communicate with non-Siemens devices?
Yes. The S7-1200 seamlessly supports open industrial communication standards, primarily PROFINET and Modbus TCP. This interoperability allows engineers to integrate VFDs, sensors, and HMIs from brands such as ABB, Omron, Schneider Electric, and Pepperl+Fuchs into a Siemens-controlled architecture.
