Pepperl+Fuchs Inductive Sensor Selection Guide: Choosing the Right Sensor for Reliable PLC Automation

Unplanned machine downtime is often caused by a single, mismatched proximity sensor. In this engineering guide, discover the five critical factors you must evaluate when selecting a Pepperl+Fuchs inductive sensor. Learn how to choose the right mounting style, avoid false triggering, and ensure seamless wiring compatibility with Siemens, Omron, ABB, and Schneider Electric PLCs.

By ZhuoMingyu
9 min read
Pepperl+Fuchs Inductive Sensor Selection Guide: Choosing the Right Sensor for Reliable PLC Automation

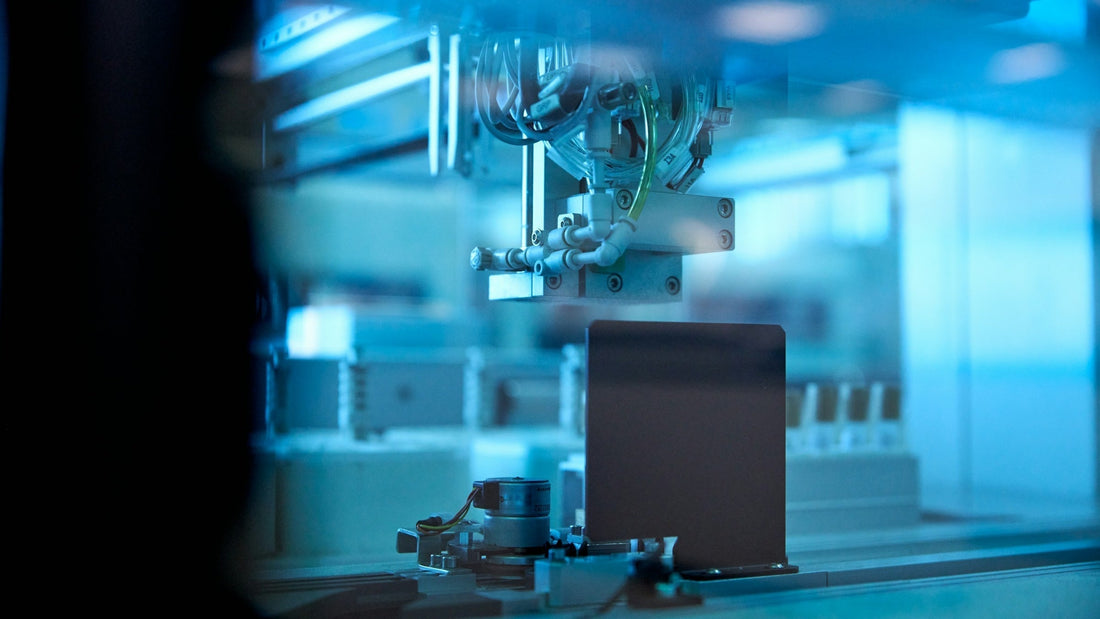

Photo by Testalize.me on Unsplash

Key Takeaways

  • Select an inductive proximity sensor based on the application—not simply the longest sensing distance.
  • Evaluate five critical factors: sensing distance, mounting style, output type, environmental protection, and PLC compatibility.
  • Pepperl+Fuchs NBN4-12GM50-E2-V1, NBB20-L2-E2-V1, and NJ5-11-N-G each address different industrial requirements, from packaging lines to hazardous-area applications.
  • Proper installation is just as important as model selection. Incorrect mounting or wiring often causes more failures than defective sensors.

Choosing the wrong inductive proximity sensor can lead to false triggering, unnecessary downtime, and increased maintenance costs. The good news is that selecting the correct model is straightforward when you evaluate the sensing environment, installation method, electrical interface, and PLC compatibility together rather than focusing on a single specification.

This guide explains how to choose the right Pepperl+Fuchs inductive sensor for industrial automation systems. You'll learn when models such as the NBN4-12GM50-E2-V1, NBB20-L2-E2-V1, and NJ5-11-N-G are the appropriate engineering choice, and how they integrate with Siemens, ABB, Omron, and Schneider Electric PLC platforms.

Why Incorrect Sensor Selection Causes Unexpected Downtime

Unexpected machine stoppages are often caused by sensing problems rather than PLC failures. While controllers receive most troubleshooting attention, unstable proximity detection frequently becomes the root cause of intermittent production interruptions.

Typical issues include:

  • False triggering caused by improper sensing distance
  • Missed detection due to incorrect flush or non-flush installation
  • Reduced sensing performance on different metal materials
  • Water or coolant ingress exceeding the sensor's protection rating
  • Output mismatch between PNP, NPN, or NAMUR sensors and PLC input modules
  • Electrical noise caused by poor cable routing or inadequate grounding

According to Pepperl+Fuchs technical documentation, proper installation and application selection are essential for achieving the specified sensing distance and long-term reliability. Likewise, IEC 60947-5-2 defines the performance requirements and testing methods for proximity sensors used in industrial environments.

This guide breaks the selection process into five practical engineering considerations that can be applied during new machine design, retrofit projects, or maintenance replacement.

Understanding Inductive Sensors Before Choosing a Model

Selecting the correct sensor starts with understanding how inductive sensing actually works. Unlike photoelectric sensors, inductive proximity sensors detect conductive metals without physical contact, making them highly reliable for industrial automation.

How Does an Inductive Proximity Sensor Work?

An inductive proximity sensor generates a high-frequency electromagnetic field around its sensing face. When a conductive metal target enters this field, eddy currents are induced within the target material. These eddy currents reduce the oscillation amplitude inside the sensor, allowing the electronics to detect the presence of the object and switch the output.

Because the sensing principle depends on electrical conductivity, inductive sensors are designed primarily for metallic targets such as:

  • Steel
  • Stainless steel
  • Iron
  • Aluminum
  • Copper
  • Brass

Non-metallic materials—including plastic, wood, paper, glass, and rubber—are generally not detected unless combined with metallic components.

Compared with mechanical limit switches, inductive sensors provide several advantages:

  • No mechanical wear because there is no physical contact
  • High switching frequency for fast-moving equipment
  • Excellent repeatability for automated positioning
  • Long service life in harsh industrial environments
  • Minimal maintenance requirements
Engineering Tip: Repeatability is often more important than maximum sensing distance. For indexing applications, consistent detection improves machine accuracy more than selecting a sensor with the longest available range.

The Five Factors That Matter Most When Selecting an Inductive Sensor

Most selection mistakes occur because engineers focus on only one specification. In practice, reliable performance depends on evaluating several factors together.

1. Sensing Distance

The sensing distance should match the machine's mechanical tolerance rather than simply being as long as possible. Excessive sensing distance may increase installation tolerance but can reduce positioning accuracy and increase susceptibility to surrounding metal interference.

Typical industrial applications include:

  • 2–4 mm for compact positioning applications
  • 5–8 mm for general machine automation
  • 12–20 mm for conveyors and material handling

2. Flush vs. Non-Flush Mounting

The mounting method directly affects the usable sensing distance.

Mounting Style Characteristics Typical Applications Advantages Limitations
Flush (Shielded) Sensor can be mounted level with surrounding metal. Compact machinery, tooling fixtures, machine frames. Better mechanical protection. Shorter sensing distance.
Non-flush (Unshielded) Sensor head extends beyond surrounding metal. Conveyors, material handling, larger machine clearances. Longer sensing distance. Requires additional installation clearance.

Selecting the wrong mounting style is one of the most common causes of unstable sensing performance after equipment commissioning.

3. Output Type

The sensor output must match the PLC input module.

  • PNP: Most commonly used with Siemens, Omron, ABB, and Schneider Electric PLCs.
  • NPN: Still found in some Asian equipment and legacy systems.
  • NAMUR: Designed for intrinsically safe hazardous-area applications requiring dedicated interface amplifiers.

Always verify the PLC digital input specifications before ordering replacement sensors.

4. Environmental Protection

Industrial sensors frequently operate in environments containing oil, dust, vibration, coolant, or washdown procedures. Selecting the correct IP rating significantly improves long-term reliability.

  • IP67 — Suitable for most manufacturing environments.
  • IP68 — Recommended for continuous exposure to water or coolant.
  • Stainless-steel housings provide improved corrosion resistance in food, pharmaceutical, and chemical industries.

5. Switching Frequency and Response Time

High-speed automation requires sensors capable of responding quickly enough to detect every passing workpiece.

Packaging equipment, robotic pick-and-place systems, and high-speed conveyors generally require higher switching frequencies than slower process automation equipment. Selecting a sensor with insufficient switching performance may result in missed detection despite correct installation.

Comparing Popular Pepperl+Fuchs Inductive Sensors

Different machines require different sensing characteristics rather than simply the longest sensing distance. The following three Pepperl+Fuchs models are widely used across industrial automation because each addresses a different operating environment.

Model Sensing Distance Mounting Output Protection Recommended Application
NBN4-12GM50-E2-V1 4 mm M12 Threaded PNP Normally Open IP67 Packaging machinery, assembly equipment
NBB20-L2-E2-V1 20 mm Flush Rectangular PNP Normally Open IP68 Conveyors, logistics, material handling
NJ5-11-N-G 5 mm Cylindrical NAMUR Industrial Duty Chemical plants and hazardous areas

Beyond these popular models, engineers may also consider the Pepperl+Fuchs NBB15-U1 for medium-range sensing, the NCB Series for compact installations, the Omron E2E Series for general-purpose machine automation, or the Schneider Electric XS Series when standardizing on the Modicon ecosystem. Each family offers different strengths in housing options, diagnostics, and environmental protection, making application requirements—not brand alone—the deciding factor.

Matching Pepperl+Fuchs Sensors with Siemens, ABB, Omron, and Schneider PLCs

Electrical compatibility is just as important as sensing performance. Even the most capable inductive sensor will not perform reliably if its output characteristics, wiring, or switching speed are incompatible with the PLC input module.

Fortunately, most modern 24 VDC Pepperl+Fuchs PNP sensors integrate easily with mainstream PLC platforms when proper wiring practices and manufacturer recommendations are followed.

Siemens SIMATIC S7-1200 and S7-1500

Siemens SIMATIC controllers are commonly paired with PNP inductive sensors in factory automation.

  • Use standard 24 VDC PNP digital inputs.
  • Verify the input current and switching frequency for high-speed applications.
  • Use PROFINET diagnostics to distinguish wiring faults from sensor failures.
  • Route sensor cables separately from motor power cables to reduce electromagnetic interference (EMI).

Omron NX, NJ, and CP1H Controllers

Omron PLCs are well suited to high-speed sensing applications such as packaging, assembly, and motion control. While legacy Asian systems often default to NPN, modern Omron controllers seamlessly support PNP inputs. Always verify the input module polarity before installation.

  • Configure high-speed inputs where required.
  • Consider IO-Link masters when advanced diagnostics are needed.
  • Verify the sensor response time for high-cycle machinery.

ABB Automation Systems

ABB controllers are frequently deployed in robotic cells, conveyor systems, and automated assembly lines.

  • Select sensors with appropriate IP ratings for robotic workcells.
  • Protect sensor cables from repetitive flexing.
  • Confirm response times for synchronized robotic operations.

Schneider Electric Modicon PLCs

Schneider Electric Modicon PLCs support standard industrial proximity sensors with minimal configuration.

  • Confirm compatibility with the digital input module.
  • Use shielded cables in electrically noisy environments.
  • Maintain proper grounding practices to minimize false triggering.
Best Practice: Before replacing a sensor, verify the PLC input type (PNP, NPN, or NAMUR), supply voltage, and wiring diagram. Many "sensor failures" are actually wiring or configuration issues.

Real-World Example: Packaging Line Retrofit

Correct sensor selection can significantly improve machine reliability. While every installation differs, the following example illustrates a typical retrofit workflow.

During one of our recent packaging line upgrades, we replaced aging M12 proximity sensors with Pepperl+Fuchs NBN4-12GM50-E2-V1 units after repeated intermittent detection problems.

Initial Challenges

  • Occasional false triggering during high-speed operation.
  • Oil contamination around the sensing face.
  • Damaged sensor cables caused by repeated maintenance.
  • Inconsistent detection caused by incorrect mounting distance.

Implementation Steps

  1. Replace worn sensors with new NBN4-12GM50-E2-V1 units.
  2. Adjust the sensing gap according to manufacturer recommendations.
  3. Optimize PLC digital input filtering to eliminate electrical noise.
  4. Verify switching frequency under full production speed.

Observed Results

  • Approximately 35–40% fewer sensor-related production interruptions.
  • Faster troubleshooting through standardized sensor models.
  • More consistent detection repeatability across the production line.

Actual improvements depend on machine design, operating conditions, maintenance practices, and installation quality.

Common Installation Mistakes That Reduce Sensor Reliability

Many proximity sensing failures originate from installation errors rather than defective hardware.

Common Mistake Potential Consequence Recommended Solution
Installing a non-flush sensor in a flush mounting location Reduced sensing distance or unstable detection Match the mounting style to the application.
Incorrect sensing gap Intermittent triggering Adjust according to the manufacturer's specifications.
Routing sensor cables alongside motor power cables Electromagnetic interference (EMI) Separate signal and power wiring.
Poor grounding or ground loops Random PLC input signals Follow proper grounding practices.
Target object too small Reduced effective sensing distance Verify minimum target dimensions in the datasheet.
Selecting an insufficient IP rating Water or coolant ingress Choose IP67 or IP68 based on the operating environment.

Pepperl+Fuchs vs Omron vs Schneider Electric Inductive Sensors

Each manufacturer offers distinct advantages depending on the application. The best choice depends on environmental conditions, integration requirements, and long-term maintenance strategy.

Brand Primary Strength Considerations Typical Applications
Pepperl+Fuchs Excellent detection stability and extensive industrial portfolio Typically higher initial purchase cost Heavy industry, packaging, logistics, process automation
Omron Wide availability and excellent PLC integration Smaller hazardous-area portfolio General factory automation
Schneider Electric Strong compatibility with Modicon automation platforms Smaller sensor product range Machine builders and building automation
ABB Excellent robotics and automation ecosystem More limited sensor portfolio Robotic assembly and material handling

No single manufacturer is universally superior. Selecting the appropriate sensor should always consider installation environment, maintenance requirements, available spare parts, and compatibility with the existing automation platform.

Decision Tree: How to Choose the Right Pepperl+Fuchs Sensor

Most engineers can narrow the correct model by answering five simple questions.

  1. Will the sensor detect a metal target?
    • If no, consider a photoelectric or capacitive sensor instead.
  2. What sensing distance is required?
    • Compact machinery generally requires shorter sensing distances.
    • Conveyors and material handling often benefit from longer sensing ranges.
  3. Will the sensor be flush mounted?
    • Select shielded (flush) or unshielded (non-flush) models accordingly.
  4. Which PLC input type is available?
    • PNP
    • NPN
    • NAMUR
  5. What environmental protection is required?
    • IP67 for standard industrial environments.
    • IP68 for continuous water or coolant exposure.

Following this process significantly reduces the likelihood of premature replacement, unstable sensing, or unnecessary downtime.

TL;DR

Reliable automation starts with selecting the correct inductive sensor—not simply the highest-specification model.

Evaluate sensing distance, mounting style, output type, environmental protection, and PLC compatibility together before making a purchasing decision. A properly selected and correctly installed sensor will generally provide greater long-term reliability than upgrading to a more expensive model without addressing the application's actual requirements.

If you're planning a machine upgrade or replacing obsolete proximity sensors, explore our Pepperl+Fuchs product range to compare specifications, verify compatibility with Siemens, ABB, Omron, or Schneider Electric PLCs, and request sourcing assistance for difficult-to-find industrial components.

Browse Pepperl+Fuchs Sensors at ChipsGate →

Frequently Asked Questions

Which Pepperl+Fuchs sensor is best for conveyor systems?

It depends—the required sensing distance and installation space determine the best choice. For longer sensing distances in harsh industrial environments, the NBB20-L2-E2-V1 is often an excellent option because it combines a 20 mm sensing distance with IP68 protection.

Can Pepperl+Fuchs sensors connect directly to Siemens S7-1200 PLCs?

Yes—provided the sensor output matches the PLC input module. Most S7-1200 digital input modules support standard 24 VDC PNP sensors. Always verify wiring diagrams and electrical specifications before installation.

Is a longer sensing distance always better?

No—a longer sensing distance is not always the optimal engineering choice. Excessive sensing distance may reduce positioning accuracy and increase sensitivity to nearby metal structures. Select the shortest distance that satisfies the application's mechanical tolerance.

What is the difference between IP67 and IP68?

IP68 provides a higher level of protection against water ingress. IP67 is suitable for most industrial environments, while IP68 is recommended for applications involving continuous immersion or heavy coolant exposure.

When should I choose a NAMUR sensor?

It depends—NAMUR sensors are primarily intended for hazardous-area installations. They require compatible intrinsically safe interface modules and are commonly used in the chemical, pharmaceutical, and oil & gas industries.
